Overview

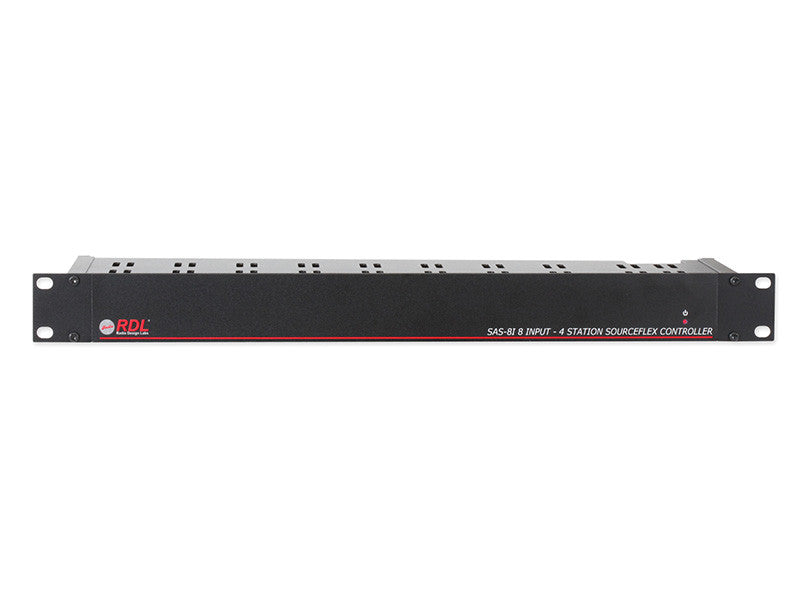

SAS-8i is an audio input chassis for SourceFlex™ Audio System that accepts 8 balanced or unbalanced sources. The SAS-8i has separate paging input and closure contacts. It is programmable for maximum number of sources used. The SAS-8i supports SAS-8C or SAS-82 SourceFlex controllers and controls 4 SourceFlex listening stations. There is a provision to set maximum listening level at each station and has the protection of an auto-resetting fuse protects power feed, to each listening station.
Features
- Audio input chassis for SourceFlex Audio System
- Accepts 8 balanced or unbalanced sources
- Separate paging input and closure contacts
- Programmable for maximum number of sources used
- Supports SAS-8C or SAS-82 SourceFlex controllers
- Controls 4 SourceFlex listening stations
- Provision to set maximum listening level at each station
- Auto-resetting fuse protects power feed to each listening station
Specifications
| Audio Inputs, switched (8) | 100 k? balanced or unbalanced line level, detachable terminal block |
| Audio Input, paging | 100 k? balanced or unbalanced line level, detachable terminal block |
| Audio Input Level | -22 dBu to +4 dBu nominal (+22 dBu max.), 25-turn adjustable pot |
| Control Input | Paging Terminal; External closure to ground to activate |
| Front Panel Presets | DIP switch to set number of inputs used |
| Metering | 1 Green LED (intensity indicates audio level) ; 1 Red LED (indicates 0 dB audio level) |
| Frequency Response | 50 Hz to 35 kHz (±1 dB) |
| THD+N | < 0.1% @ 1 KHz (bandwidth 20 Hz to 20 kHz) |
| Output, bus | 24-pin ribbon cable header loop-thru output to drive SAS-82 or SAS-8C |
| Outputs (4) | 6-position detachable terminal blocks (connection to remote Listening Station) |
| Audio Output Gain Range | 40 dB (trimmer presettable) |
| Indicators | LED; Output voltage present at Remote Outputs |
| Power Requirement | 24 Vdc @ 1 A, Ground-referenced |
| Ambient Operating Environment | 0° C to 50° C |
| Package Type | Cardboard Box |

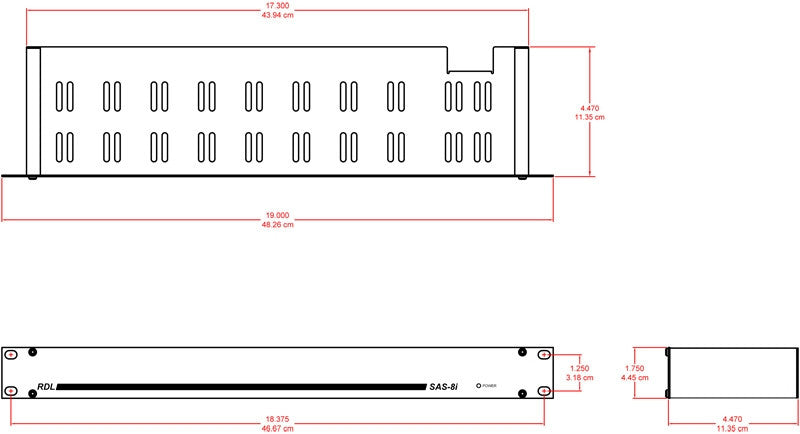

| Package Dimensions | 20.5 x 6.75 x 2.25 in. |
| Shipping Weight | 4.185 lbs. |
| WEEE weight | 3.615 lbs. |
| Tariff code | 8518.40.2000 |
