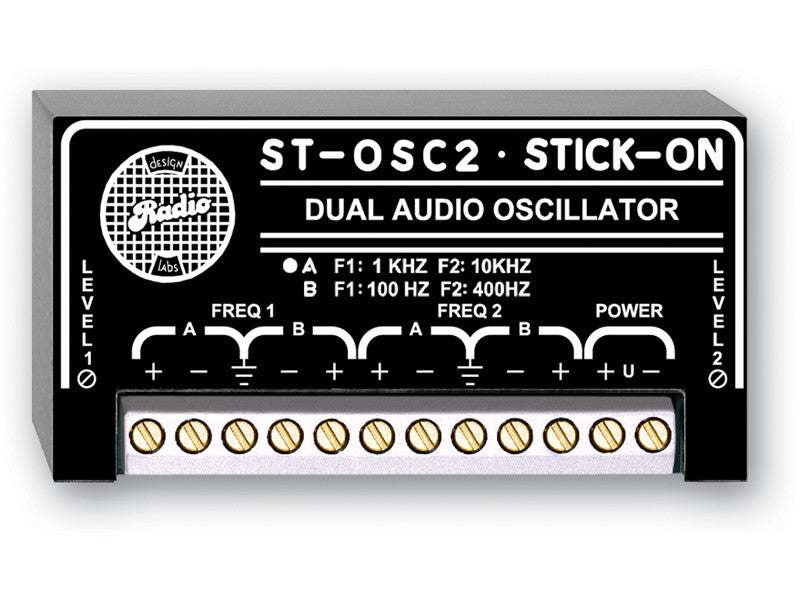

Overview
Each of the ST-OSC2 products is a Dual Audio Oscillator. These products are designed for quick, convenient installation, and reliable operation in a variety of audio applications.
- Low-impedance output drives virtually any audio line
- Outputs may be connected to either balanced or unbalanced lines
- Multiturn level adjustment permits precise output setting
- Separate output level control provided for each oscillator
- Integral AGC circuitry for stable output level
- Each oscillator has two separate outputs to drive stereo lines
The ST-OSC2 products feature RDL's SupplyFlex power input configuration. The module will operate directly from floating 24 Vdc or bipolar dc power. If a jumper is connected between the POWER minus terminal and any module ground, the module power becomes ground-referenced.
Features
- Precision Sine-Wave Audio Signal
- Amplitude-Stable Oscillator
- Two Single-Tone Oscillators
- 1 kHz and 10 kHz
- Precise User-Adjustable Levels
- Each Oscillator Has Two Separate Outputs
- RDL SupplyFlex Power Input Configuration

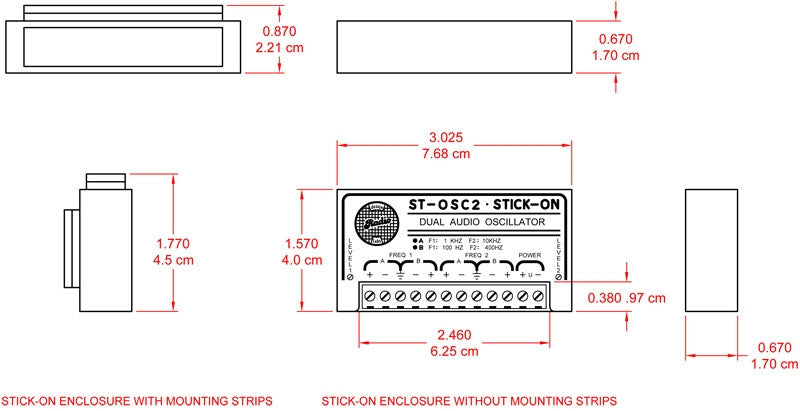

Specifications
| Outputs | 2 for each oscillator, bal. or unbal. |
| Output Impedance | 200 ? to drive high or low Z lines |
|
Nominal Frequencies: | |
| ST-OSC2A | 1 kHz and 10 kHz |
| ST-OSC2B | 100 Hz and 400 Hz |
|
THD+N: | |
| ST-OSC2A | 0.5% |
| ST-OSC2B | < 3% |
| Output Level | Off to +10 dBu (adjustable) 600 ? load. Level Maintained by internal AGC circuit |
| Ambient Operating Environment | 0° C to 55° C |
| Power Requirement | GROUND-REFERENCED or FLOATING, 24 Vdc @ 80 mA |
| Package Type | Cardboard Box |
| Package Dimensions | 2 x 2 x 4 in. |
| Shipping Weight | 0.2 lbs. |
| WEEE weight | 0.145 lbs. |
| Tariff code | 8543.20.0000 |
