Overview

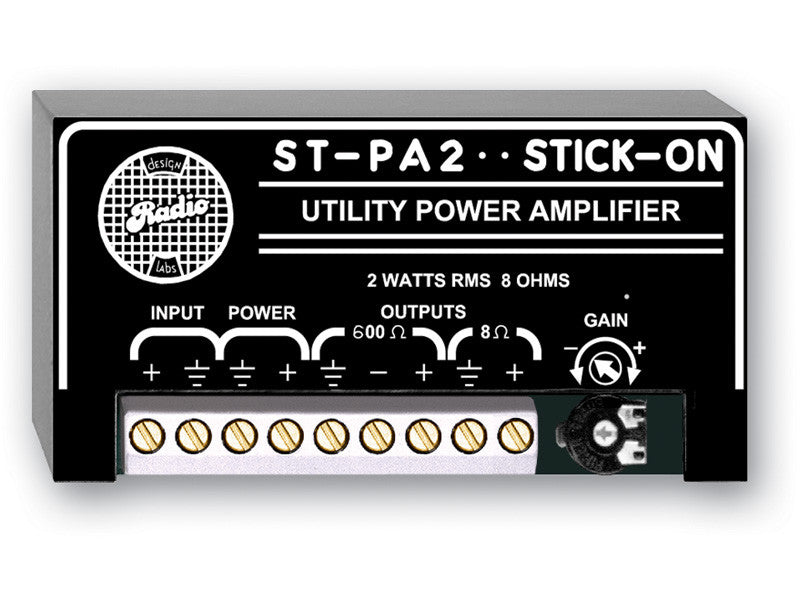

The ST-PA2 features a single, unbalanced audio input, a gain control, and two outputs. The first output is designed to deliver a clean 2 watts RMS into an 8 ? speaker. The second output is intended to drive 600 ? transformers, typically on equipment inputs. This makes the ST-PA2 uniquely suited to applications such as music-on-hold inputs on telephone systems which may have either 8 ? or 600 ? inputs. If desired, both outputs may be used at the same time.
Features
- 2 Watts RMS into 8 Ω
- +12 dBu Into 600 Ω
- Quality Utility Amplifier
- Intercom Driver
- Music-On-Hold Driver
Specifications
| Input | Unbalanced 10 k? |
| Input Level | -15 dBV minimum (for rated power output) -20 dBV minimum (for 1 watt RMS into 8 ? |
| Frequency Response | 35 Hz to 30 kHz (8 ? ± 1.5 dB) 20 Hz to 30 kHz (600 ? ± 0.5 dB) |
| THD+N | < 0.75%; 0.5% typical |
| Noise | < -80 dB (8 ? @ 2 W RMS) < -70 dB (600 ?, referred to +4 dBu) |
| Outputs (2) | 1 @ 8 ?, 2 watts RMS maximum 1 @ 600 ?, +12 dBu maximum |
| Ambient Operating Environment | 0° C to 40° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 250 mA |
| Package Type | Cardboard Box |

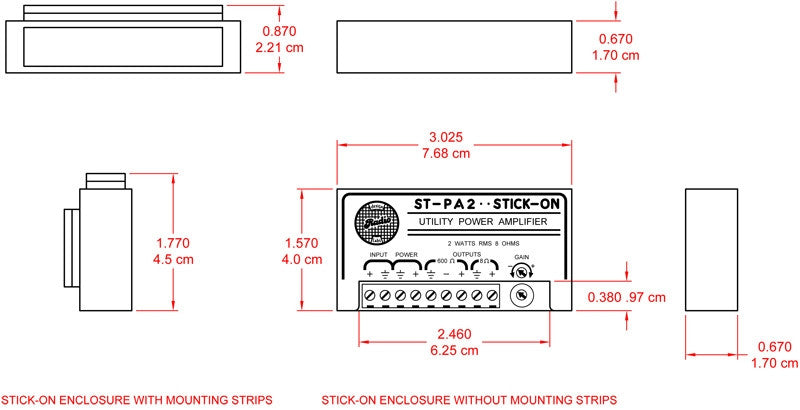

| Package Dimensions | 2 x 2 x 4 in. |
| Shipping Weight | 0.18 lbs. |
| WEEE weight | 0.13 lbs. |
| Tariff code | 8518.50.0000 |
