Overview

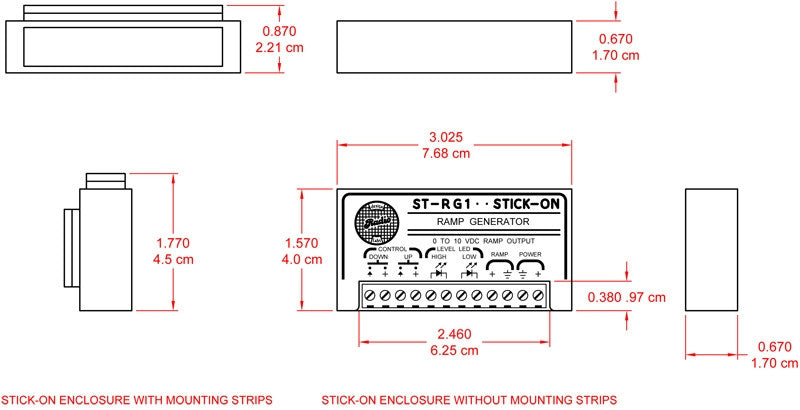

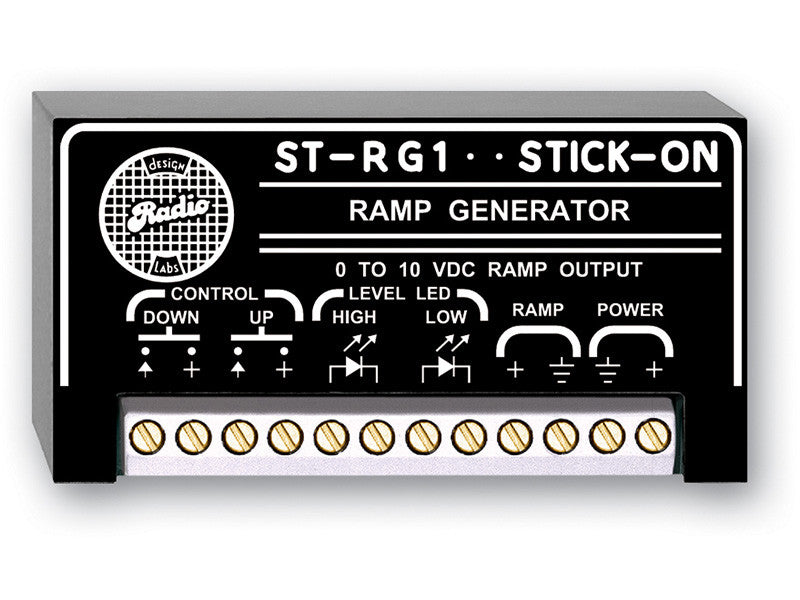

The ST-RG1 is a digitally generated 0 to 10 volt Ramp Generator which provides the ideal interface for audio volume control from multiple points with the ST-VCA3. Any number of Up and Down buttons may be connected to the ST-RG1. Sufficient drive is provided from the ST-RG1 to control up to six ST-VCA3s.
Features include:
- VCAs may be controlled from several locations with the optional D SERIES-RLC2 Remote Level Control. LED level indicator driver circuitry is included in the ST-RG1 for visual indication of relative level.
Features
- Ramp Generator with 0 to 10 Volt Output
- Remote Control of ST-VCA3 modules
- Multiple VCA Remote Control Points
- Pushbutton Up / Down Ramp Control
- Dual LED Outputs for Position Indication
- Ramp Output Capable of Driving Six VCAs
- Buffered, De-Bounced Switch Inputs
Specifications
| Control Inputs | 1 to ramp up, 1 to ramp down |
| Input Logic | External closure pulls normally low input to +15 Vdc to activate UP or DOWN function |
| Indicator Outputs | 1 to drive red LED (partial to fully OFF) 1 to drive green LED (partial to fully ON) |
| LED Output Current | 0 to 3 mA (to drive low current, high intensity LEDs) |
| Ramp Output | 0 to 10 volts nominal, (typical < 0.1 V to > 9.8 V under ST-VCA3 load) |
| Minimum Step | 200 mV nominal |
| Ramp Time | 5 seconds nominal (fully off to fully on; or fully on to fully off) |
| Ambient Operating Environment | 0° C to 55° C |
| Power Requirement | GROUND-REFERENCED, 24 Vdc @ 40 mA |
| Package Type | Cardboard Box |
| Package Dimensions | 2 x 2 x 4 in. |
| Shipping Weight | 0.21 lbs. |
| WEEE weight | 0.155 lbs. |
| Tariff code | 8518.29.0000 |
