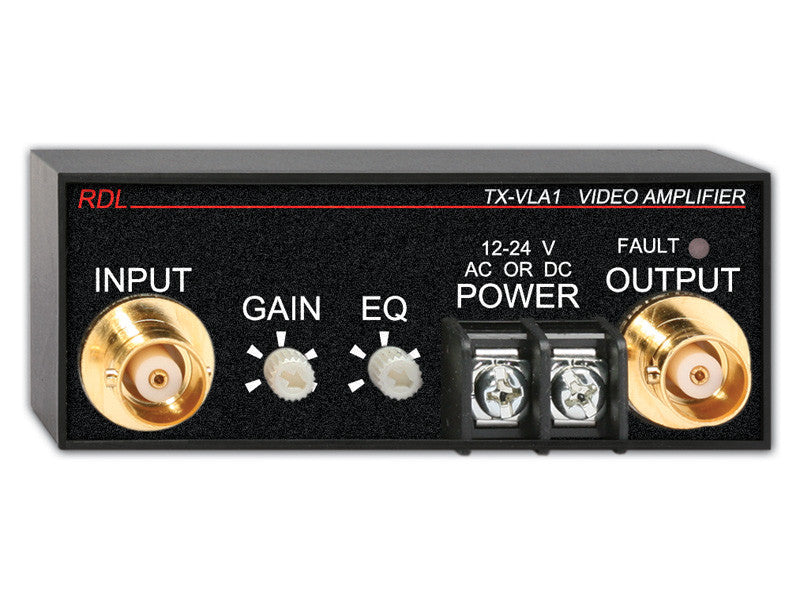

Features
- Boost Video Levels
- Adjustable Video Level
- Adjustable Equalization
- Drive Long Video Lines
- Video Amplifier Powered from Available Voltage Sources
- High-Quality Video in Small Size
- NTSC or PAL
Specifications
| Input | 75 ?, BNC, Ground-referenced |
| Input Level | 1 V p-p video |
| Gain | Unity to +5 dB (adjustable) |
| Bandwidth | 10 MHz |
| Equalization Adjustment | Flat to +4 dB @ 3.58 MHz (adjustable) Flat to +7 dB @ 5 MHz (adjustable) |
| Equalization Curve | Optimized at each setting for flattest response of video signal components without square-wave overshoot |
| Residual Noise | < -65 dB (referenced to 1 V p-p) |
| Output | 75 ? source terminated, BNC, Ground referenced |
| Ambient Operating Environment | -10° C to 50° C |
| Power Requirement | GROUND-REFERENCED 12 to 33 Vdc or 12 to 24 Vac, @ 30 mA |
| Package Type | Cardboard Box |

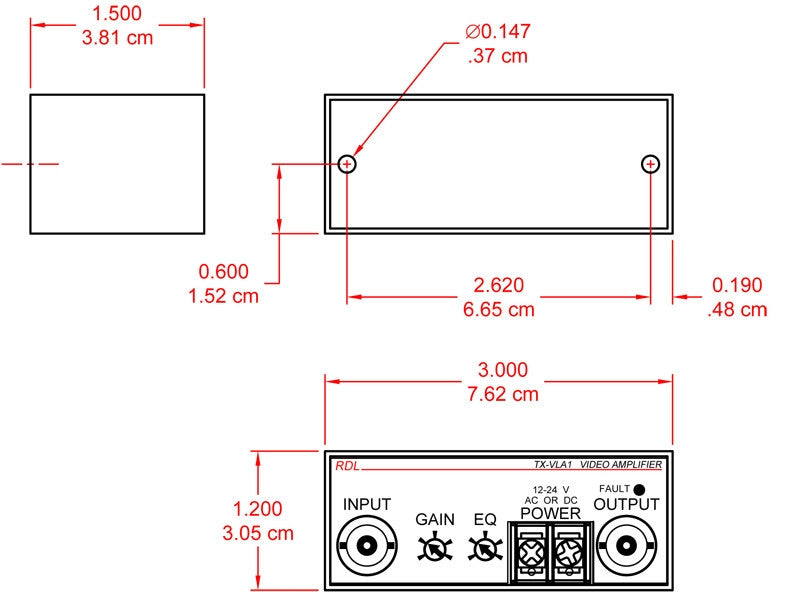

| Package Dimensions | 2 x 2 x 4 in. |
| Shipping Weight | 0.275 lbs. |
| WEEE weight | 0.215 lbs. |
| Tariff code | 8518.40.2000 |
