Overview:

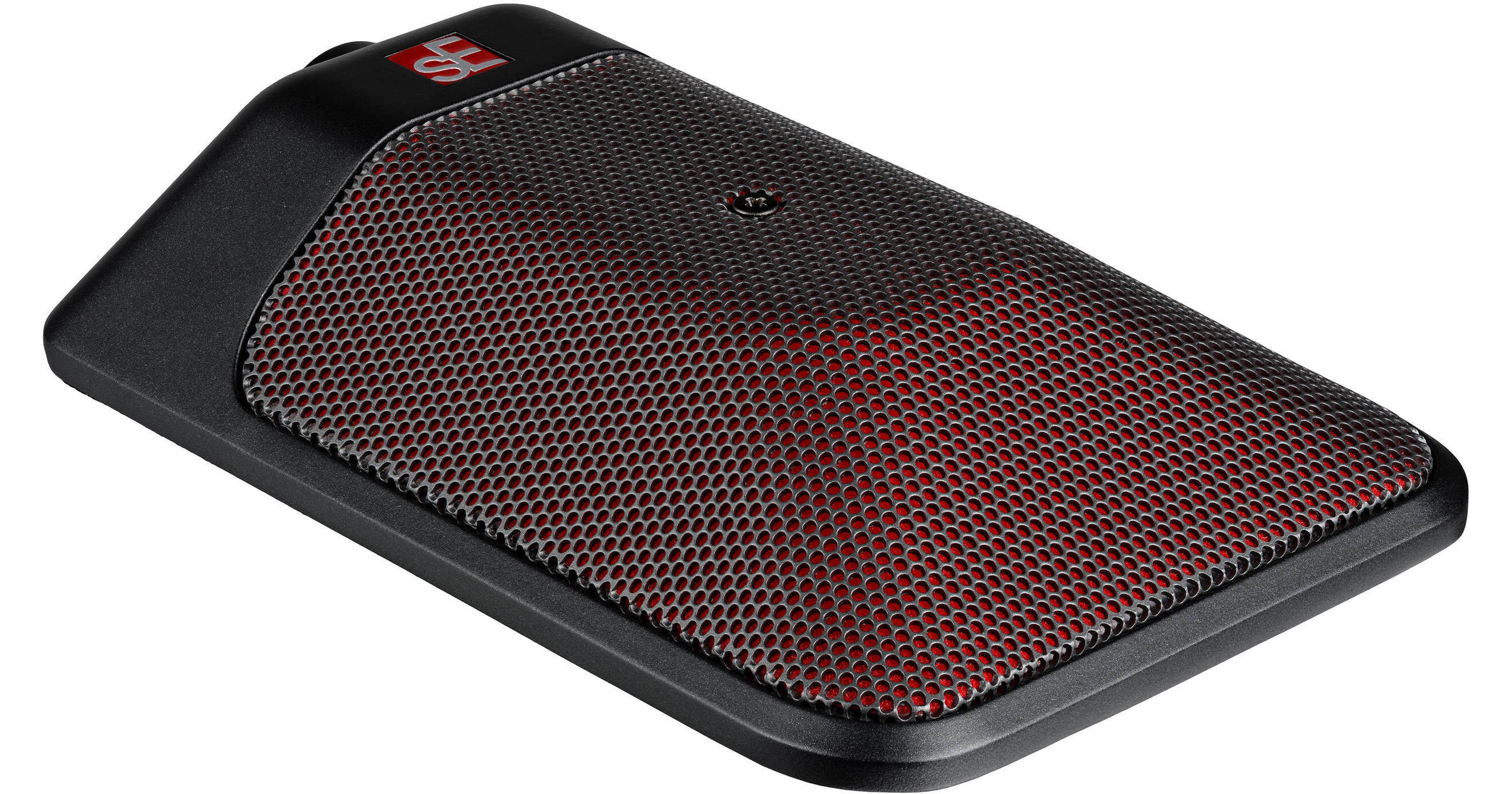

Delivering an all-metal, tank-like build quality and extreme flexibility for a wide range of live and studio applications, the BL8 Omni from sE Electronics is a boundary microphone sporting an omnidirectional, 3-micron true-condenser diaphragm for exceptional sensitivity in the low-frequency range, making it ideal for miking kick drums and similar bottom-heavy sources. With onboard controls for two different low-cut frequencies (80 or 160 Hz), two different attenuation levels (-10 or -20 dB), and two different EQ voicings (Classic or Modern), the BL8 Omni is versatile indeed, deftly handling ambient room miking, pianos, and more with exceptional clarity.

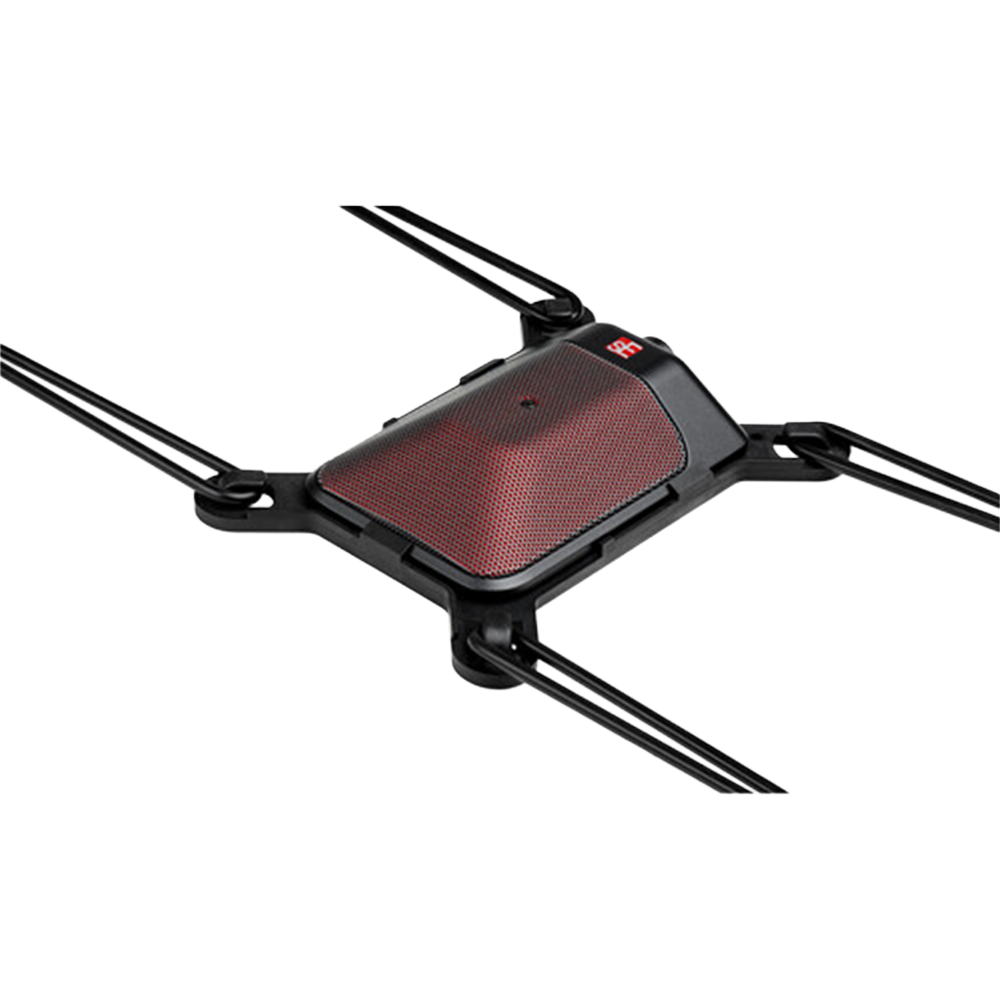

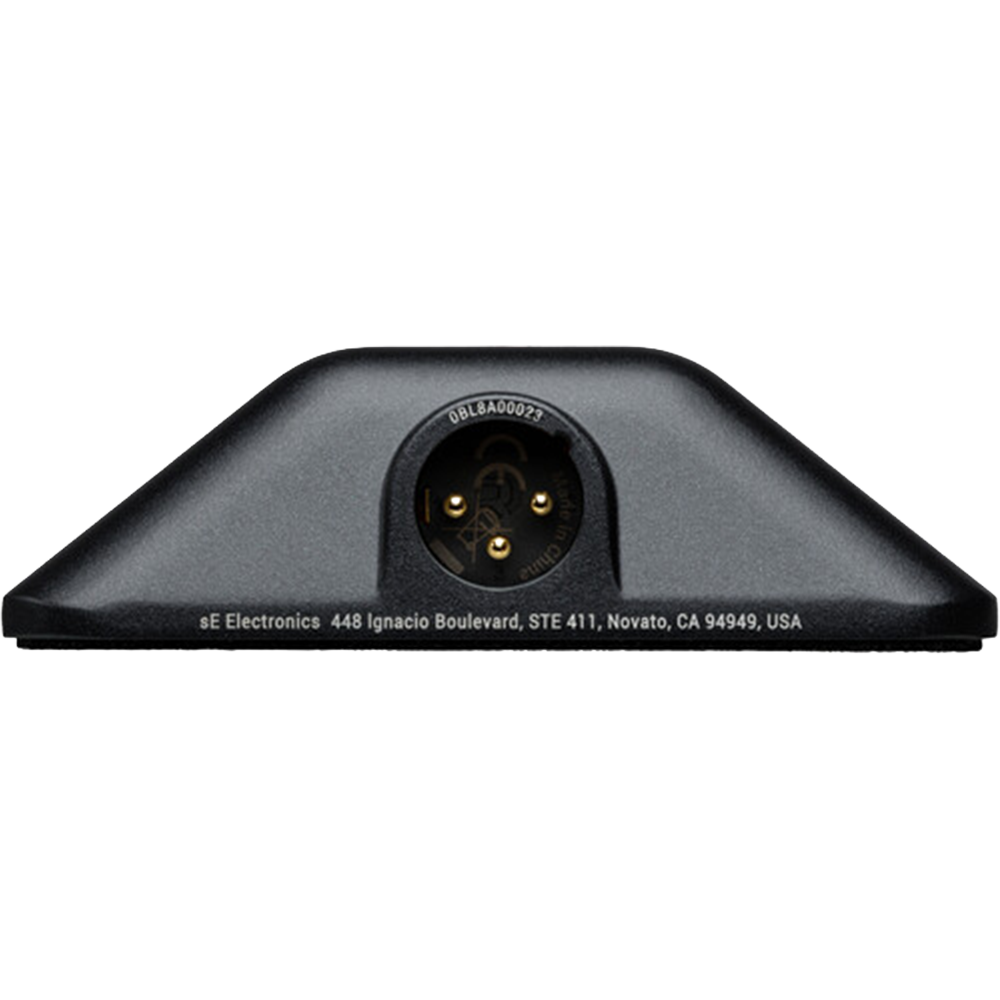

The transformerless, Class-A circuitry in the BL8 ensures enough headroom to avoid distortion and an ultralow-noise signal with plentiful transparency. The tour-ready enclosure sports a dent-proof grille and gold-plated XLR contacts to survive the rigors of the road—the durable design can also support the Kelly Shu Flatz Isolation System, ideal for heavy touring applications. This microphone includes a carry pouch for safe transport.

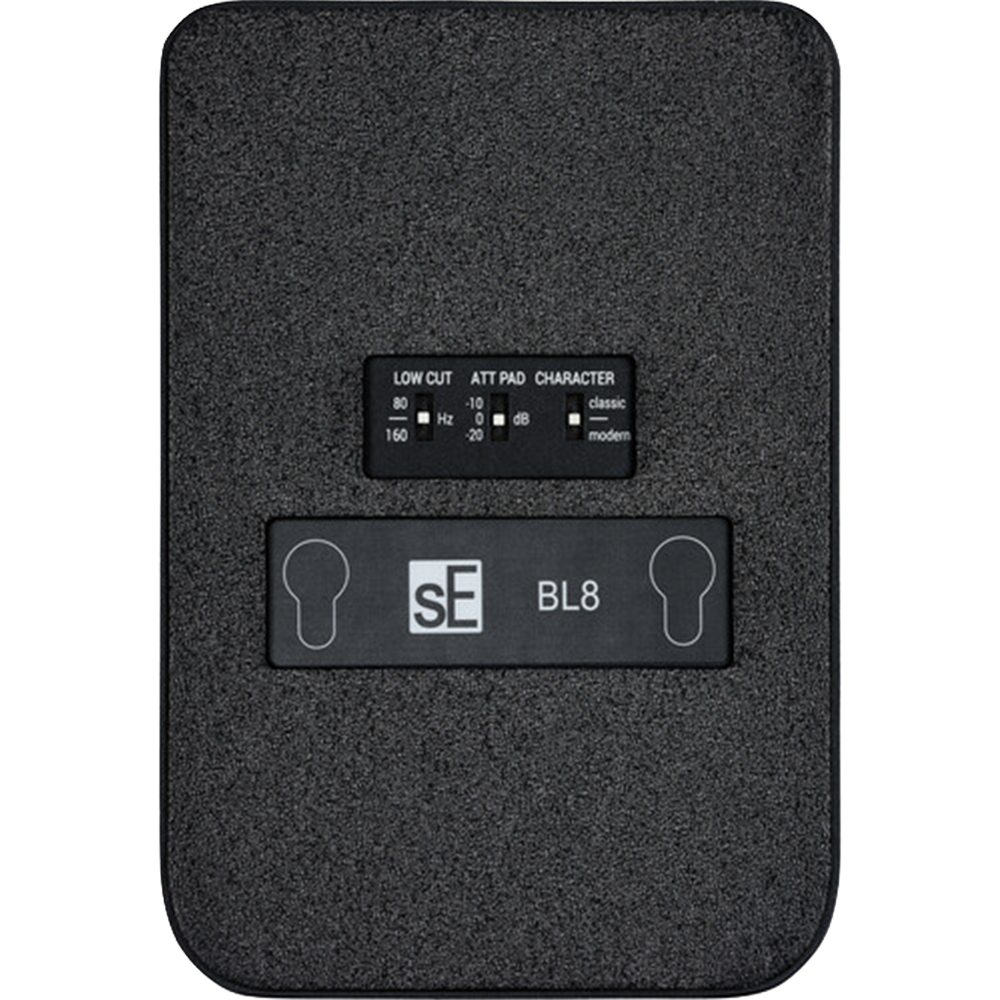

Low Cut
This switch allows you to curb the low-frequency response at two different frequencies (80 or 160 Hz) or leave it flat. For applications like room miking or speech, the low-cut switch reduces unwanted footfall noise and rumble. It can also be used to minimize proximity effect.
Attenuation Pad
The attenuation pad reduces the microphone's signal by 10 or 20 dBs when activated, preventing loud sources from overloading your mixer, preamp, or audio interface. In its center position, the pad is deactivated, and the microphone's output is unaffected.
It is recommended that you initially activate the 10 dB attenuation when miking a kick drum. For very loud sources, you may need to activate the 20 dB attenuation. Moderately loud sources should be fine at the 0 dB setting.
Character
The ideal studio kick drum tone is often different than preferences in a live sound environment. Similar to the award-winning kick-drum mic, the V KICK, the BL8 Omni offers Classic and Modern character voicings.
These options both cut and shape the low-mid frequencies to emphasize transients and punch. In its center position, the capsule's neutral response is retained, which is ideal for a plethora of other applications.
Swappable Capsule

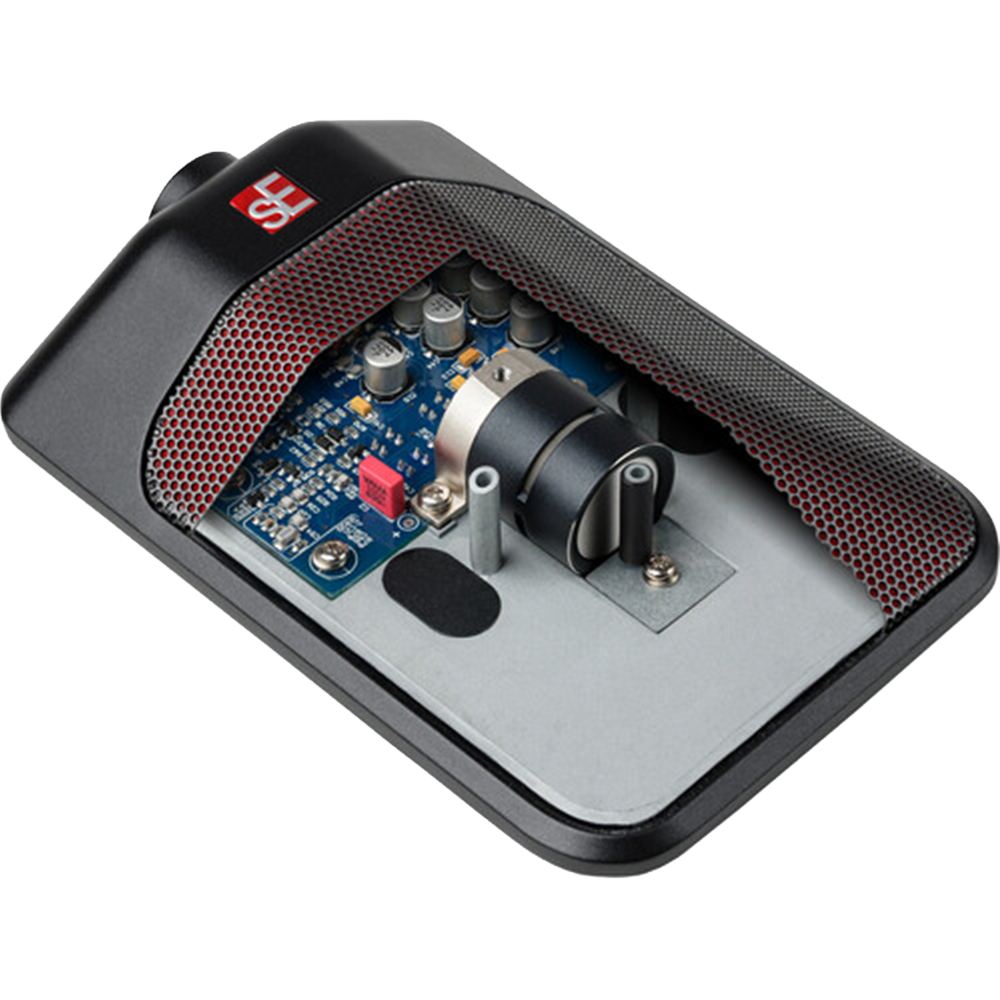

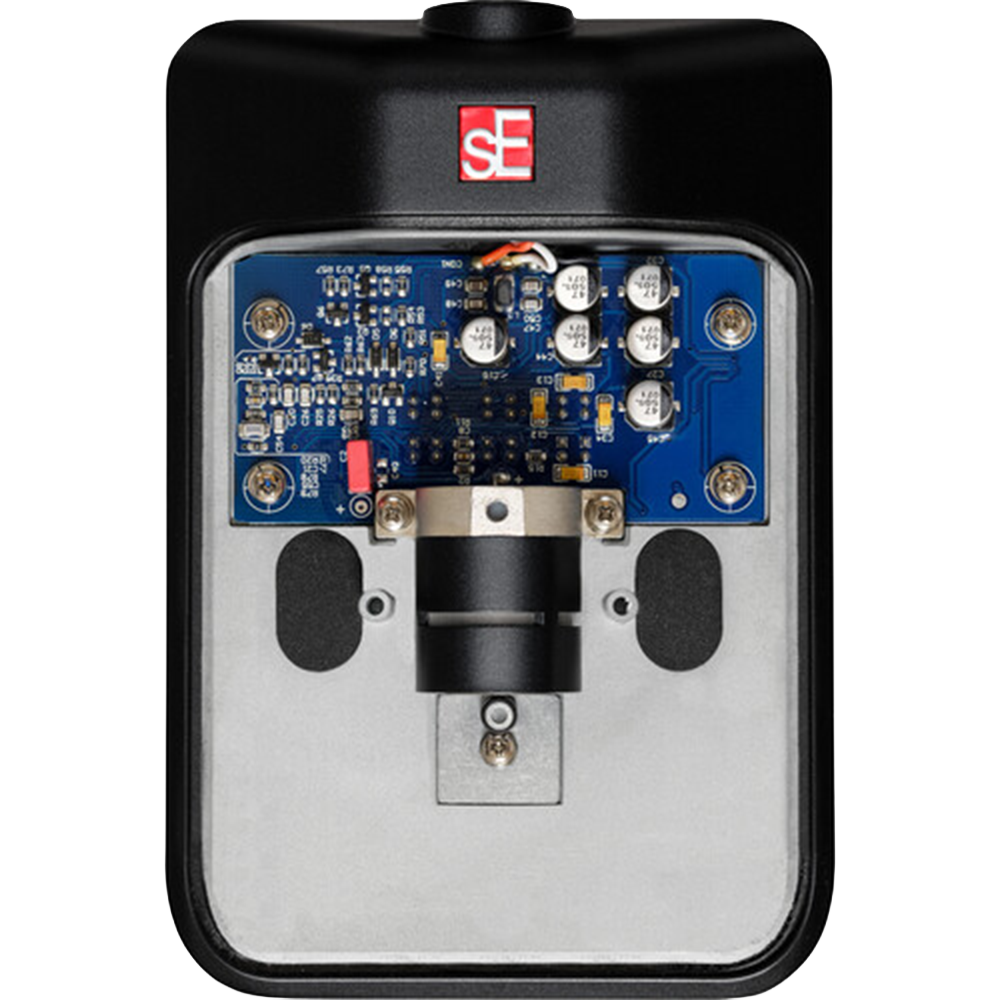

The omnidirectional capsule inside the BL8 Omni can be swapped for an alternative, such as the half-cardioid capsule, to allow for an even greater range of applications. Simply turn the screw at the center of the mic's grille until its loose, remove the capsule retainer screw, and replace.
Surface Mounting
Using screws, the BL8 Omni can be mounted to a surface, wall, ceiling, or the lid of a grand piano. Simply open the microphone as you would if you were changing the capsule.
The two mounting points are covered with black stickers; remove them with a sharp tool. Then, use a sharp tool to punch through the underlying protective foil, and mount as desired with screws (not included).
Specs:
Microphone Type
Boundary
Polar Pattern
Omnidirectional
Element Type
Condenser
Controls
Low Cut/HPF, Mid Boost, Mid Cut, Pad, Voicing Preset
Frequency Response
20 Hz to 20 kHz
Maximum SPL
141 dB (.5% THD)
161 dB (.5% THD, with Pad)
Analog Output
1x XLR 3-Pin Male
Power Sources
Phantom Power
Microphone
Microphone Type
Boundary
Polar Pattern
Omnidirectional
Element Type
Condenser
Sound Field
Mono
Diaphragm
0.1 mil / 3 µm (Thickness)
Orientation
N/A to Boundary Mics
Controls
Low Cut/HPF, Mid Boost, Mid Cut, Pad, Voicing Preset
Pad
-10 / -20 dB
Filter & EQ
Low-Cut Filter: 80 Hz / 120 Hz
Circuitry
Solid-State
Performance
Frequency Response
20 Hz to 20 kHz
Maximum SPL
141 dB (.5% THD)
161 dB (.5% THD, with Pad)
Dynamic Range
126 dB (without Pad)
146 dB (with Pad)
Equivalent Noise Level
15 dB (A-Weighted)
Connectivity
Analog Output Connector
1x XLR 3-Pin Male
Power
Power Sources
Phantom Power
Operating Voltage
48 V (Phantom Power)
Physical
Color
Black
Mounting Thread Size
No Mount Included
Dimensions
H: 1.12 x W: 3.74 x L: 5.47" / H: 2.84 x W: 9.5 x L: 13.89 cm
Weight
19 oz / 538 g
Packaging Info
Package Weight
1.88 lb
Box Dimensions (LxWxH)
8 x 6 x 2.3"
