Overview
AD1 delivers impeccable audio quality and RF performance with wide-tuning, High Density mode, and encryption. Features durable metal construction, optional rechargeable power with dockable charging, and TA4 and LEMO3 connector options.

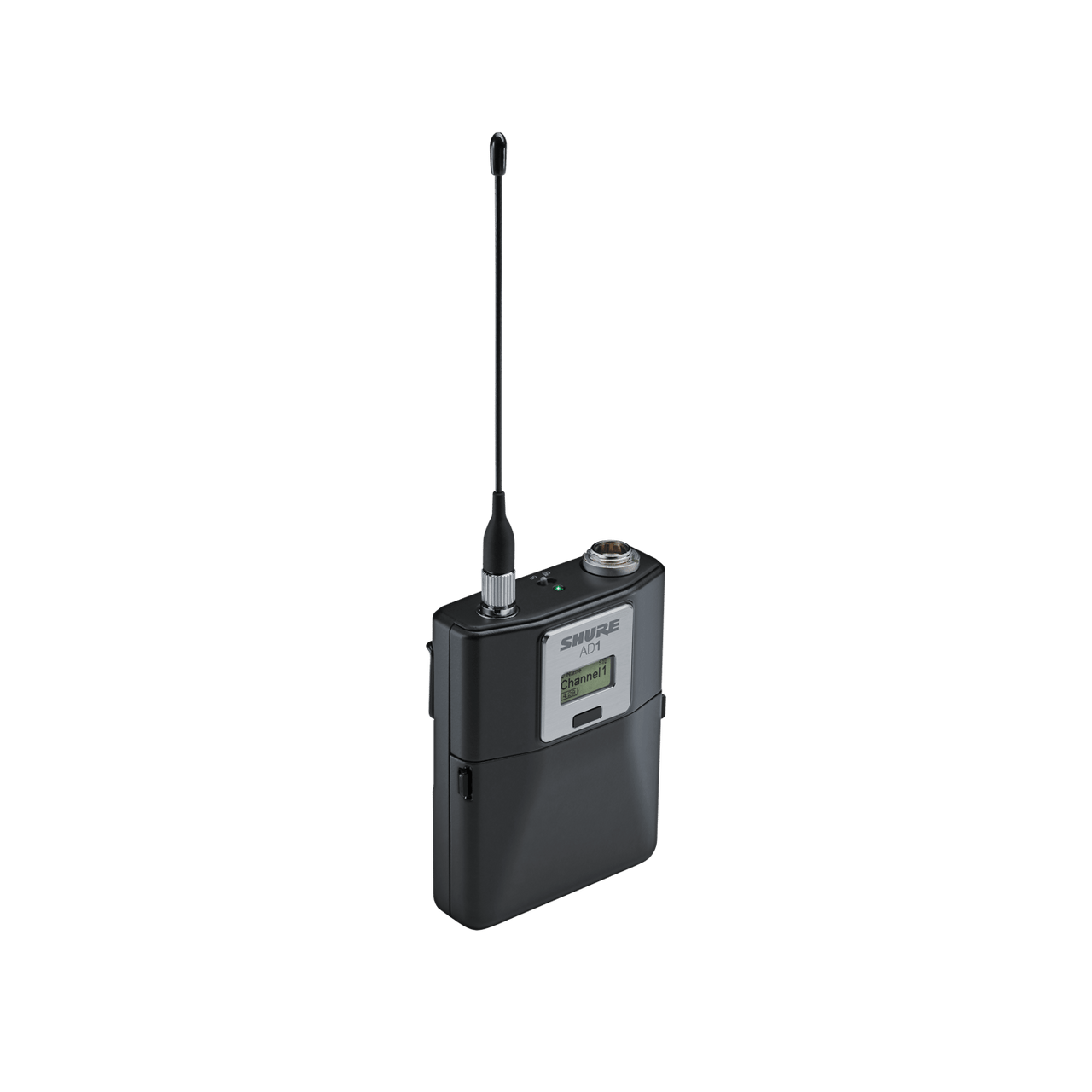

The AD1 is a wireless bodypack transmitter compatible with Axient™ Digital Wireless Systems.
With breakthrough RF performance and wide tuning up to 184 MHz, the AD1 puts professional-quality wireless digital audio within reach.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
- Two connector options: TA4 and LEMO3
- Detachable ¼-wave antenna
- AA or SB900A lithium-ion rechargeable batteries for convenient power options
- External contacts for docked charging
Specifications
| Weight | 155g |
| Height x Width x Depth | 86.0 × 66.0 × 23.0mm |
| Transmitter weight | 155g |
| Battery life lithium | 9h |
| Battery life alkaline | 8h |
| Form Factor | Bodypack |
| Transmitter housings | Metal |
| Audio Mute | Yes |
| Detachable Antennas | Yes |
| Switchable RF power | Yes |
| Batteries | Shure Lithium-Ion battery |
| Battery Status | Multi-Color LED, HH:MM (Hours and minutes) |
| Encryption | 256 Bit AES |
| Charger Options | Docking Charger, Networked Charger, USB Charger |
| Configuration | Unbalanced |
| Connectors | LEMO3, TQG |
| Frequency Diversity | No |
| Functionality | Transmitter |
| High Density Mode | Yes |
| Included antenna | 1/4 wave |
| Transmitter displays | Backlit LCD |
| Transmission | Digital in UHF TV band |
