Overview
ADX1, like all ADX transmitters, sets the stage for exceptional performance, with wide tuning up to 184 MHz, interference protection, advanced rechargeability, streamlined design, and ShowLink remote control for real-time parameter adjustments right from the booth. Includes two SB910 rechargeable batteries.

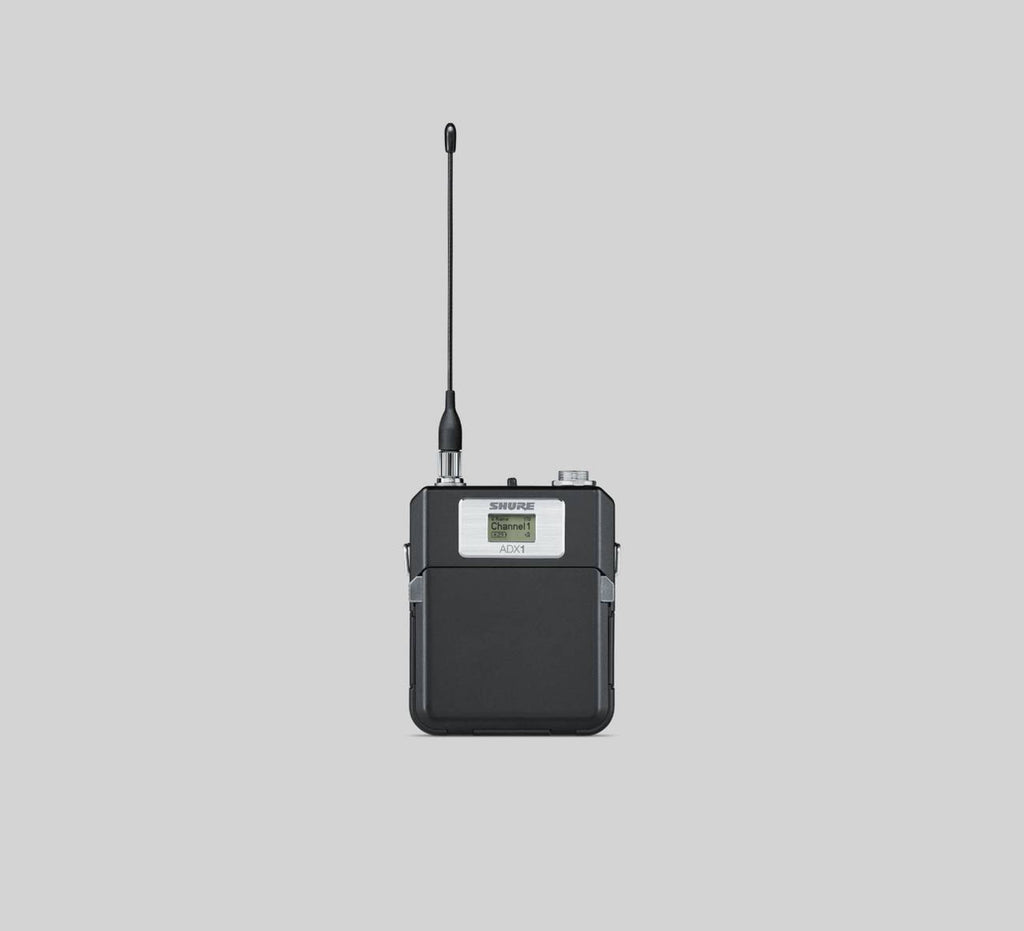

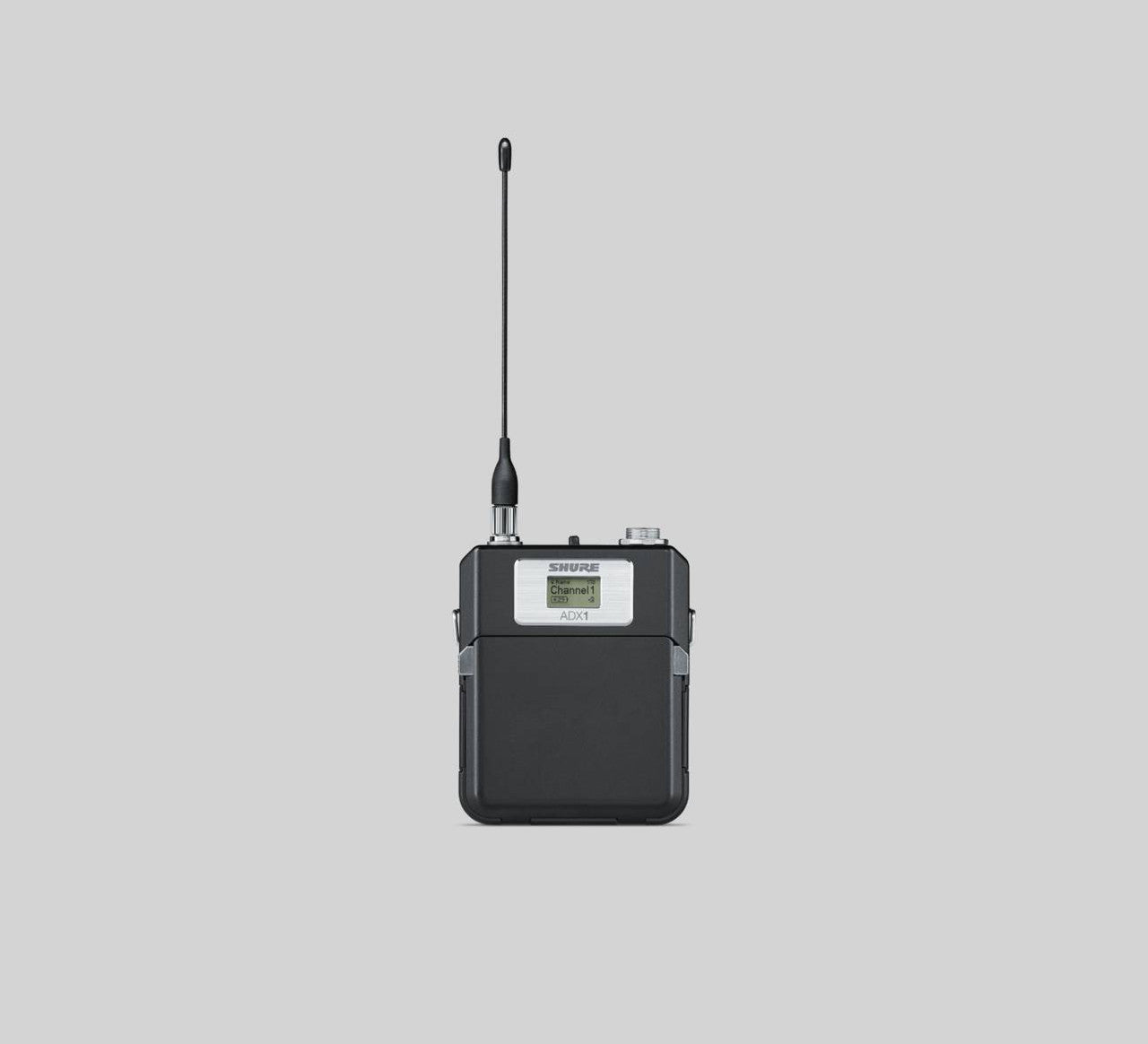

The ADX1 is a wireless bodypack transmitter compatible with Axient Digital Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.
Features
- Removable antenna and fully concealed buttons and switch
- Two connector options: TA4 and LEMO3
- Advanced control menu with powerful features
- Durable, moisture-resistant, lightweight metal case
- Up to 10 hours of runtime with SB910 rechargeable battery
- Diversity ShowLink enabled for remote transmitter control and automatic interference avoidance
- External contacts for docked charging
- Two transmission modes: Standard for optimal coverage and new High Density for maximum system channel count and robust coverage
- Encryption-enabled, secure transmission
Specifications
| Weight | 142g |
| Height x Width x Depth | 91.0 × 68.0 × 19.0mm |
| Battery life lithium | 10h |
| Form Factor | Bodypack |
| Transmitter housings | Metal |
| Audio Mute | Yes |
| Detachable Antennas | Yes |
| Switchable RF power | Yes |
| Batteries | Shure Lithium-Ion battery |
| Encryption | 256 Bit AES |
| Configuration | Unbalanced |
| Connectors | LEMO3, TQG |
| Frequency Diversity | No |
| Functionality | Transmitter |
| High Density Mode | Yes |
| Input impedance | 1000kΩ |
| Transmitter displays | Backlit LCD |
| Transmission | Digital in UHF TV band |
