Overview
T-Series Touchscreens
Symetrix touchscreens are ideal for houses of worship, conference rooms, auditoriums, hospitality—anywhere users need customized system management. Control screens can include any of the parameters needed, display customer branding, and provide easy-to-use buttons, sliders, and navigation for end-users.
User control in every part of a building. Symetrix touchscreens are ideal for houses of worship, conference rooms, auditoriums, hospitality — anywhere users need to control audio sources and levels.
SymVue interface. Symetrix touchscreens leverage the power of Symetrix’s award-winning SymVue GUI authoring technology, allowing control screens to be created, tested and simulated offline in Composer before being deployed to the touchscreens. Multiple pages with custom controls, unique backgrounds, corporate logos and more can be created quickly and easily with SymVue.
Custom multi-lingual GUIs can be quickly designed using Symetrix Composer and SymVue software, then exported to as many as 80 touchscreens on a system.
Easy batch configuration of multiple touchscreens. Directly managed by Symetrix Composer, touchscreens can simultaneously export/update to named groups of up to 80 touchscreens with programmers’ choice of four different configurations for each export.
Compact and unobtrusive. Symetrix touchscreens fit in any U.S. or EU 2-gang receptacle.

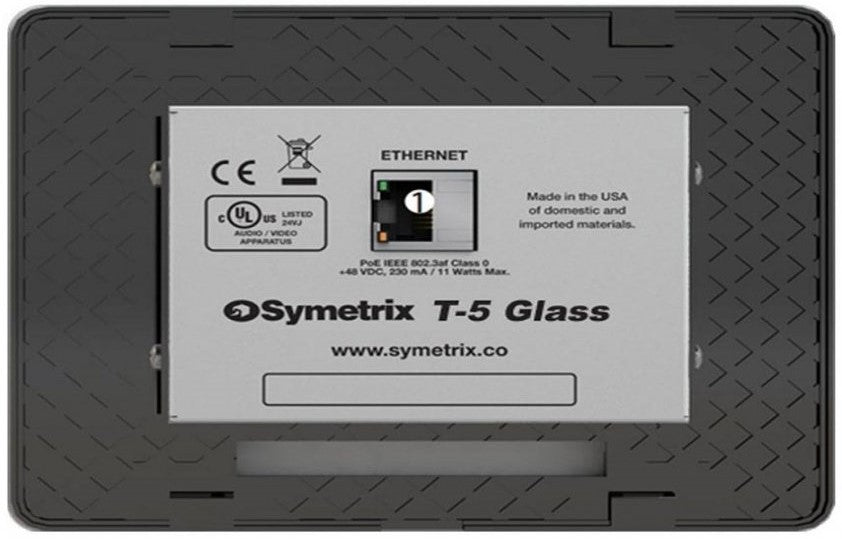

Ethernet-powered. There is no need for external power supplies, since Symetrix touchscreens are powered over Ethernet.
Features

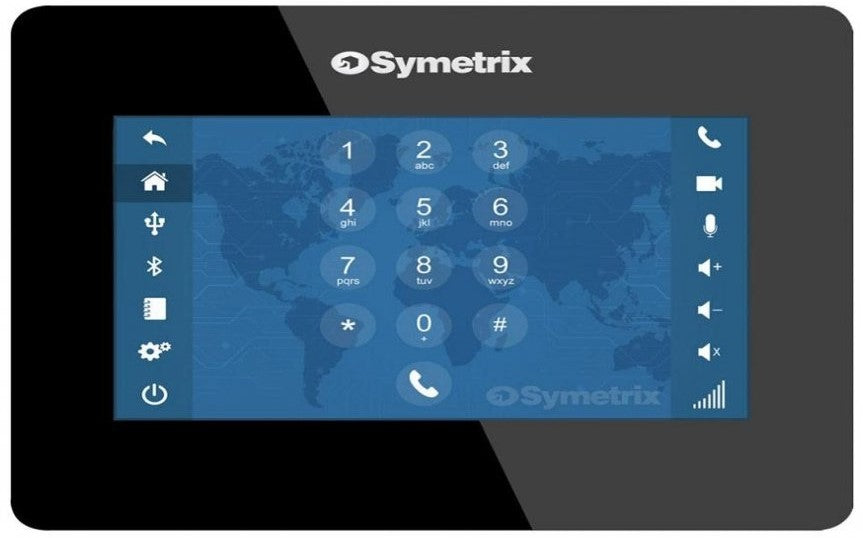

- 5-inch 1280×720 high-definition touchscreen
- Best-in-class brightness of 500 nits
- Drag-and-drop design and configuration from Symetrix Composer software
- Batch configuration of multiple units
- PoE+ powered
- Fits US and Euro double-gang wall and junction boxes
- Optional tabletop stand accessory
- Five-year warranty
Specifications
| Specification | Detail |
|---|---|
| Power | Power Requirement: PoE+, IEEE 802.3at compliant, 25.5W max |
| Display Type | Capacitive touch full color TFT LCD |
| Compatibility | Symetrix Composer-managed products |
| Display Resolution | 1280 x 720 pixels |
| Display Brightness | 500 nits |
| Display Orientation | Landscape |
| Display Viewing Angle | ±80° horizontal, ±80° vertical |
| Ethernet Cable | Standard CAT5e or CAT6. Maximum device to device length: 100 m |
| Maximum Devices per System | 128 units per Site File |
Mechanical Specifications
| Specification | Detail |
|---|---|
| Environmental | Ambient Operating Temperature: 0° – 40° C (32° – 104° F). Avoid prolonged exposure to direct sunlight or strong ultraviolet light. |
| Space Required | Double-gang US or Euro wall box. Depth does not include connector allowance. Allow at least 3-inches additional clearance for rear panel connections. Additional depth may be required depending upon your specific wiring and connections. |
| Shipping Weight | 1.25 lbs (0.57 kg) |
| Form Factor | Double-gang US or Euro wall mount |
| Product Weight | 0.95 lbs (0.43 kg) |
| Optional Accessories | Tabletop Stand |
