Overview:

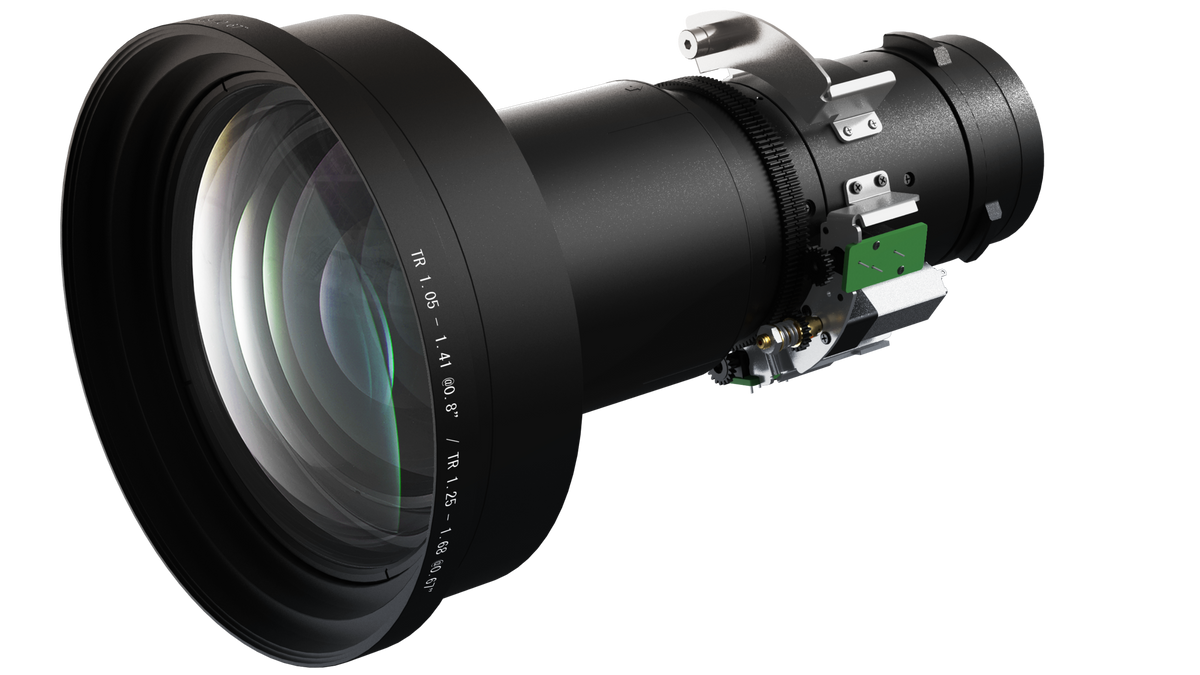

The Vivitek D89-WZ01 is a motorized wide zoom lens designed for select Vivitek HEP large-venue laser projectors. Featuring a 1.05:1 to 1.41:1 throw ratio and 1.34x optical zoom, the lens provides installation flexibility for large venues where the projector must be positioned relatively close to the screen. It is ideal for auditoriums, houses of worship, museums, higher education facilities, and professional AV installations.
Features:
Wide zoom lens
1.05:1 to 1.41:1 throw ratio
1.34x optical zoom
Motorized zoom and focus
Supports image sizes up to 600 inches
Interchangeable lens design
Optimized for large-venue projector installations
Professional installation-grade optics
Compatible with DK8150Z, DK8155Z, DU8053Z, and DU8055Z
Specs:
| Product Type | Wide Zoom Projector Lens |
| Manufacturer Part Number | SS-5811141777-VV |
| Lens Model | D89-WZ01 |
| Lens Type | Wide Zoom Lens |
| Throw Ratio | 1.05:1 - 1.41:1 |
| Zoom Ratio | 1.34x |
| Motorized Zoom | Yes |
| Motorized Focus | Yes |
| Aperture | f/1.9 - f/2.08 |
| Focal Length | 18.78 - 25.3 mm |
| Throw Distance | 3.75 ft - 51 ft (1.14 m - 15.5 m) |
| Projection Size | 50" - 600" |
| Aspect Ratio | 16:10 |
| Compatible Projectors | DK8150Z, DK8155Z, DU8053Z, DU8055Z |
