Overview:

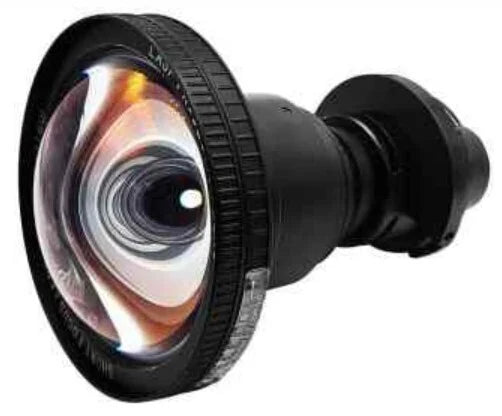

The Vivitek D86-04705 is a short-throw zoom lens designed for select Vivitek DU7000Z Series laser projectors. Featuring an ultra-short 0.47:1 to 0.50:1 throw ratio and 1.06x zoom, the lens enables large image projection in tight installation spaces. It is ideal for museums, simulation environments, classrooms, houses of worship, digital signage, and other applications where projector placement distance is limited.
Features:
Ultra short throw projection
0.47:1 to 0.50:1 throw ratio
1.06x zoom ratio
Powered lens shift
Designed for tight installation spaces
Supports image sizes up to 300 inches
Professional installation-grade optics
Compatible with DU7000Z Series projectors
Ideal for museums and simulation environments
Specs:
| Product Type | Short Throw Zoom Projector Lens |
| Manufacturer Part Number | SS-D86-04705-VVW |
| Lens Model | D86-04705 |
| Lens Type | Short Throw Zoom Lens |
| Throw Ratio | 0.47:1 - 0.50:1 |
| Zoom Ratio | 1.06x |
| Motorized Zoom | No |
| Motorized Focus | No |
| Powered Lens Shift | Yes |
| Aperture | f/7.43 |
| Focal Length | 2.1 mm |
| Throw Distance | 2.66 - 10.37 ft (0.81 - 3.16 m) |
| Projection Size | 80" - 300" |
| Aspect Ratio | 16:10 |
| Compatible Projectors | DU7099Z, DU7199Z, DU7299Z |
| Dimensions | 4.9 x 7.3 in (125 x 186 mm) |
| Product Weight | 2.2 lb (1.0 kg) |
| UPC | 813097026019 |
