Overview

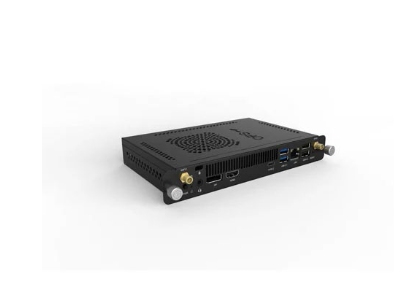

Full-featured detachable PC module designed exclusively for the NovoTouch collaborative and interactive flat panel displays
Features
- Full-featured detachable PC module for seamless integration into the NovoTouch interactive flat panel display
- Powerful 12th generation Intel® Core™ (Up to 4.4GHz)(Depends on configuration) processor with integrated Intel® Iris® Xe Graphics.
- Supports fast SSD (256GB/512GB) and DDR4 RAM (8/16/32GB) in a variety of configurations
- HDMI 1.4 & DP 1.4 out ports for connection to secondary isplay
- Up to Two (2) USB 2.0 ports and Two (2) high speed USB3.1 ports and one (1) Type-C port for connectivity to a variety f devices including but not limited keyboards,mice and flash drives
- Integrated RJ45 port for network monitoring and management solutions
- Reduces clutter & promotes a cable-free workplace
- Eco-friendly with low consumption
- Easy installation and maintenance
- Rugged steel chassis for extra strength and integrity
- Kensington® security slot for prevention against theft or unapproved removal
Specifications
- Series : VKW32-iXH08
- Compatible Products : EKxx3i series, EKxx5i series, BKxx2i series
- Type : Detachable PC Module
- Operating System : Windows 11 (Not Included)
- Interface : 80P JAE Connector
-
Hardware Specifications
- Model # : VKW32-i5H08
- CPU : Intel® Core™ i5-12450H
- Efficient-core Max Frequency : 3.3 GHz
- RAM : DDR4-3200 MHz, 8 GB
- Storage (M.2 SSD) : 256 GB
- Graphics : Intel® Iris® Xe Graphics
- Networking LAN : 10/100/1000 Mbps
-
Connectivity
- Input Audio : Microphone-In (3.5 mm)
- HDMI : HDMI 1.4 (×1)
- DisplayPort : DP 1.4 (×1)
- Output Audio : Line-out (3.5 mm)
- Ethernet : RJ45 (10/100/1000 Mbps)
- USB 3.1 : ×2
- USB 2.0 : ×2
- Type-C : ×1 (Data Only)
- Wireless : IEEE 802.11 a/b/g/n/ac/ax
- Bluetooth : Version 5.2
-
LED Indicators
- HDD : Green LED – Hard Disk is Running
- Power : Red LED – Power is On
-
Security
- TPM : Intel CPU Integrated TPM 2.0
- Security Slot : Kensington® Security Slot
-
Environmental Conditions
- Operating Temperature : -10°C to 45°C (14°F to 113°F)
- Operating Humidity : 10%–90% RH
- Storage Temperature : -20°C to 70°C (-4°F to 158°F)
- Storage Humidity : 5%–95% RH
-
Power Specifications
- Power Supply : 80-pin OPS interface power supply
- Power : 12V–19V
- Max Power : 80.7W
- Standby Power : 2.9W
-
Physical Specifications
- Accessories : Antennas (×2)
- Available Color : Black
- Weight : 0.6 kg (approximately 1.32 lbs)
- Dimensions : 180 × 119 × 30 mm (7.1 × 4.7 × 1.2 inches)
