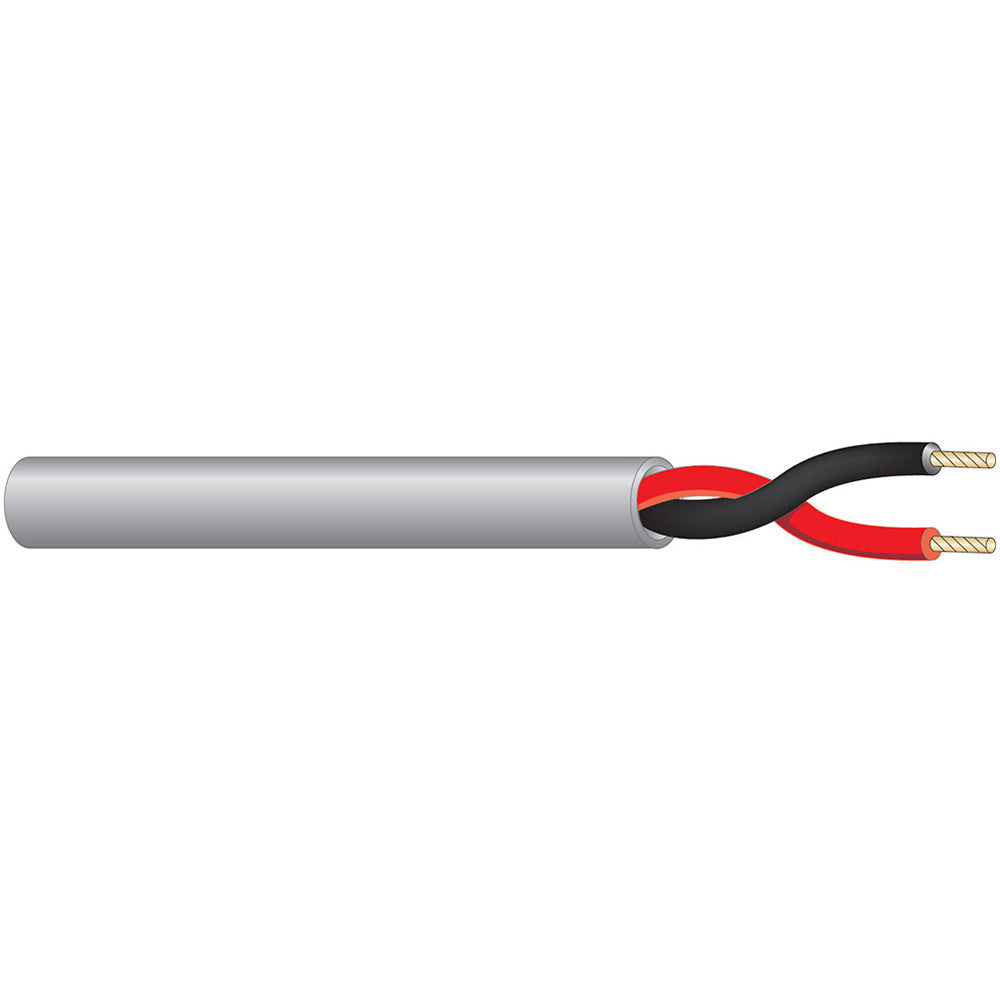

| CONSTRUCTION & DIMENSIONS | |
| CONDUCTOR PARAMETER | - |
| Number of Conductors | 2 |
| AWG Size | 16 |
| Conductor Stranding | 19x29 |
| Conductor Type | Bare copper |
| Nominal DCR | 4.2 Ohm/1000ft |
| Cabling Lay Length | 4 in |
| Twists/Foot | 3 twist/ft |
| INSULATION PARAMETER | |
| Insulation Type | Polypropylene - PP |
| Insulation Thickness | 0.008 in |
| Insulation Color Code | 1. Black 2.Red |
| SHIELDING PARAMETER | |
| Shield Type | None |
| ELECTRICAL CHARACTERISTICS |
| OVERALL CONSTRUCTION PARAMETERS | |
| Jacket Type | PVC |
| Jacket Thickness | 0.017 in |
| Nominal Cable O.D. | 0.182 in |
| Plenum | No |
| NEC UL Rating | CMR, CMG |
| RoHS Compliant | Yes |
| Pull Tension | 59 lbs |
| Bend Radius | 1.638 in |
| Cable Weight | 28 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | |
| UL Flammability | UL1666 Vertical Shaft |
| CSA Flammability | FT4 |
| Operating Range | -20 to 60 Deg C |
| UL Voltage Rating | 300 |
