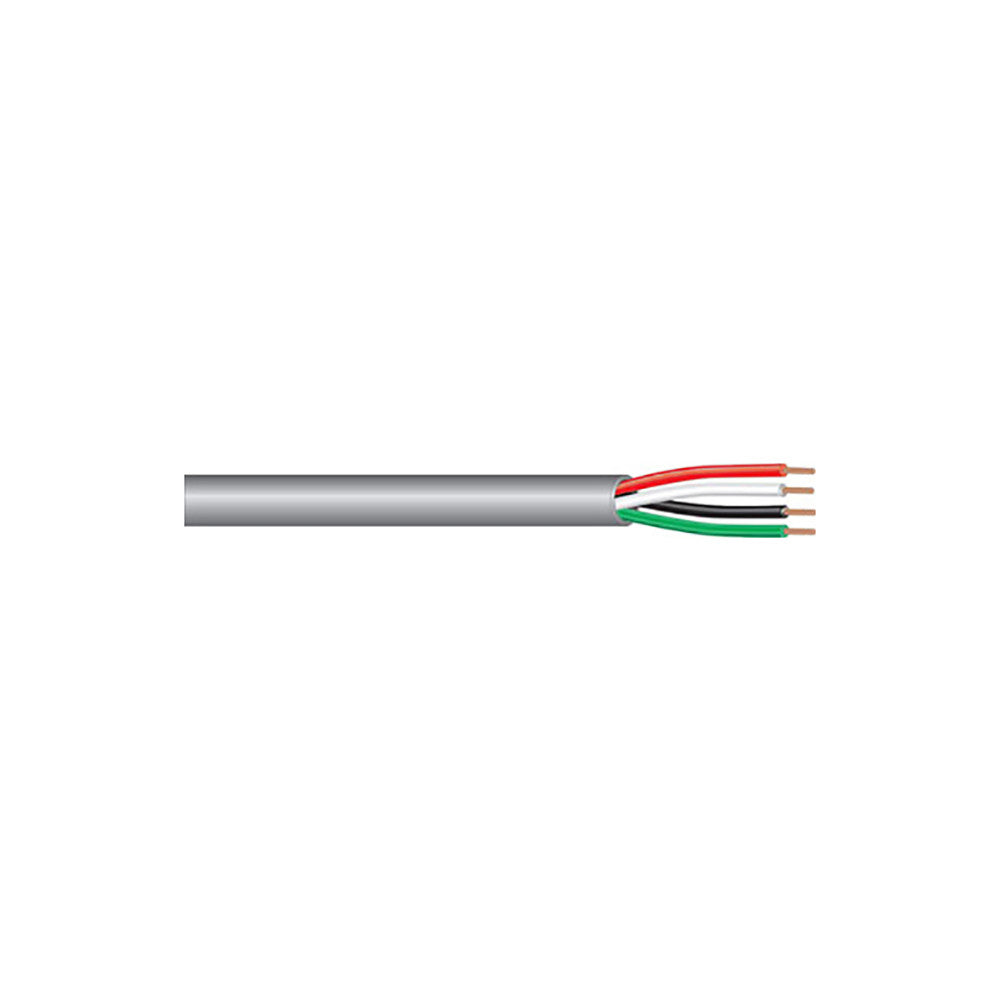

| CONSTRUCTION & DIMENSIONS | |
| CONDUCTOR PARAMETER | |
| Number of Conductors | 4 |
| AWG Size | 16 |
| Conductor Stranding | 19x29 |
| Conductor Type | Bare copper |
| Nominal DCR | 4.2 Ohm/1000ft |
| Cabling Lay Length | 3.5 in |
| Twists/Foot | 3.4 twist/ft |
| INSULATION PARAMETER | |
| Insulation Type | Polypropylene - PP |
| Insulation Thickness | 0.008 in |
| Insulation Color Code | 1.Black,2.Red,3.White,4.Green |
| SHIELDING PARAMETER | |
| Shield Type | None |
| ELECTRICAL CHARACTERISTICS |
| OVERALL CONSTRUCTION PARAMETERS | |
| Jacket Type | PVC |
| Jacket Thickness | 0.017 in |
| Nominal Cable O.D. | 0.217 in |
| Plenum | No |
| NEC UL Rating | CMR, CMG |
| RoHS Compliant | Yes |
| Pull Tension | 117 lbs |
| Bend Radius | 1.953 in |
| Cable Weight | 48 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | |
| UL Flammability | UL1666 Vertical Shaft |
| CSA Flammability | FT4 |
| Operating Range | -20 to 60 Deg C |
| UL Voltage Rating | 300 |
