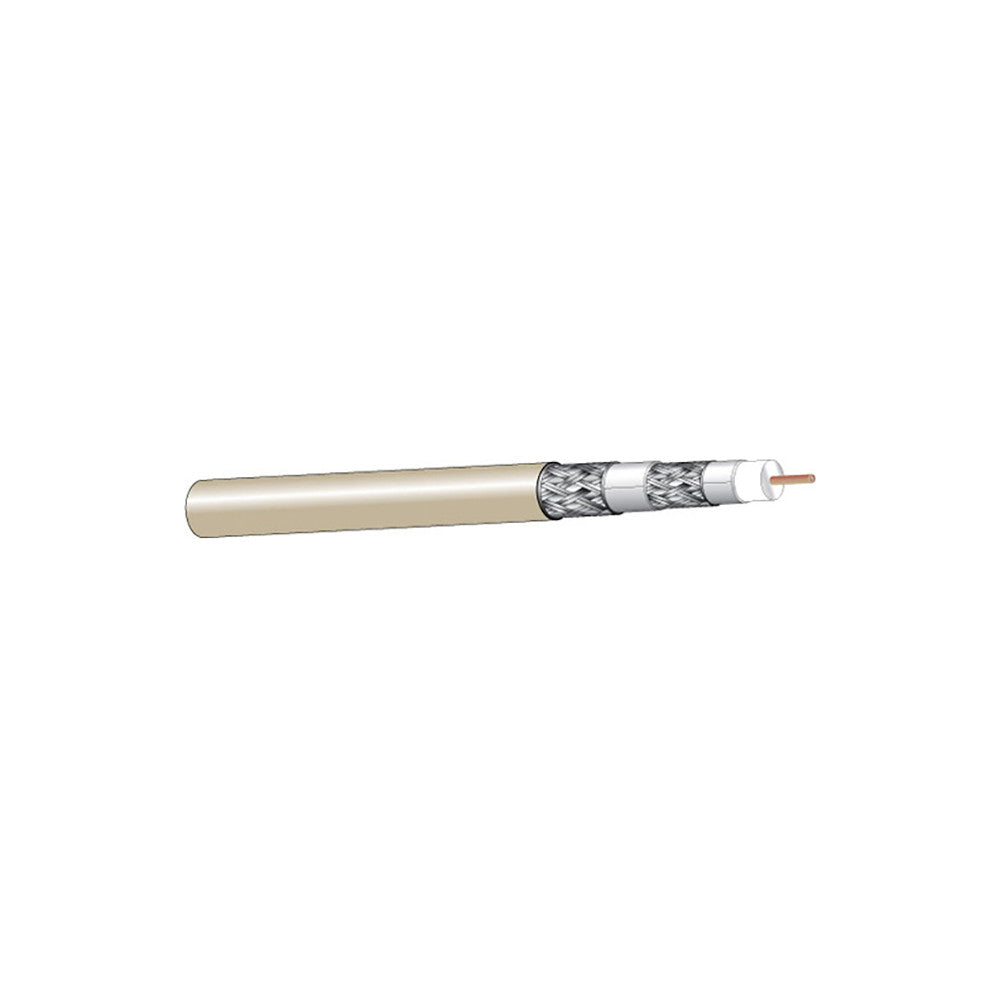

| CONSTRUCTION & DIMENSIONS | - |
| CONDUCTOR PARAMETER | - |
| Number of Conductors | 1 |
| AWG Size | 18 |
| Conductor Stranding | Solid |
| Conductor Type | Bare copper |
| Nominal DCR | 6.5 Ohm/1000ft |
| INSULATION PARAMETER | - |
| Insulation Type | Foam FEP |
| Insulation Thickness | 0.17 in |
| SHIELDING PARAMETER | - |
| Shield Type | Overall 100% Aluminum Foil + Aluminum Braid |
| Shield Type 2 | Overall 100% Aluminum Foil + Aluminum Braid |
| ELECTRICAL CHARACTERISTICS | - |
| Nominal Impedance | 75 Ohm |
| Nom. Cap. Between Conductors | 16.2 pF/ft |
| OVERALL CONSTRUCTION PARAMETERS | - |
| Jacket Type | Flexible Plenum |
| Nominal Cable O.D. | 0.273 in |
| Plenum | Yes |
| NEC UL Rating | CATVP, CMP |
| RoHS Compliant | Yes |
| Bend Radius | 2.730 in |
| Cable Weight | 38 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | - |
| Nominal Velocity of Propagation (VP) | 82 % |
| UL Flammability | NFPA 262 Plenum |
| Operating Range | -0 to 60 Deg C |
| UL Voltage Rating | 300 |
| FREQUENCY (MHz) | ATTENUATION (db/100ft) |
| 5 MHz | 0.45 dB |
| 55 MHz | 1.6 dB |
| 100 MHz | 2 dB |
| 270 MHz | 2.9 dB |
| 400 MHz | 4.5 dB |
| 540 MHz | 4.9 dB |
| 750 MHz | 6.6 dB |
| 1000 MHz | 8 dB |
| 1450 MHz | 10.3 dB |
| 2250 MHz | 13.36 dB |
| 3000 MHz | 15.42 dB |
