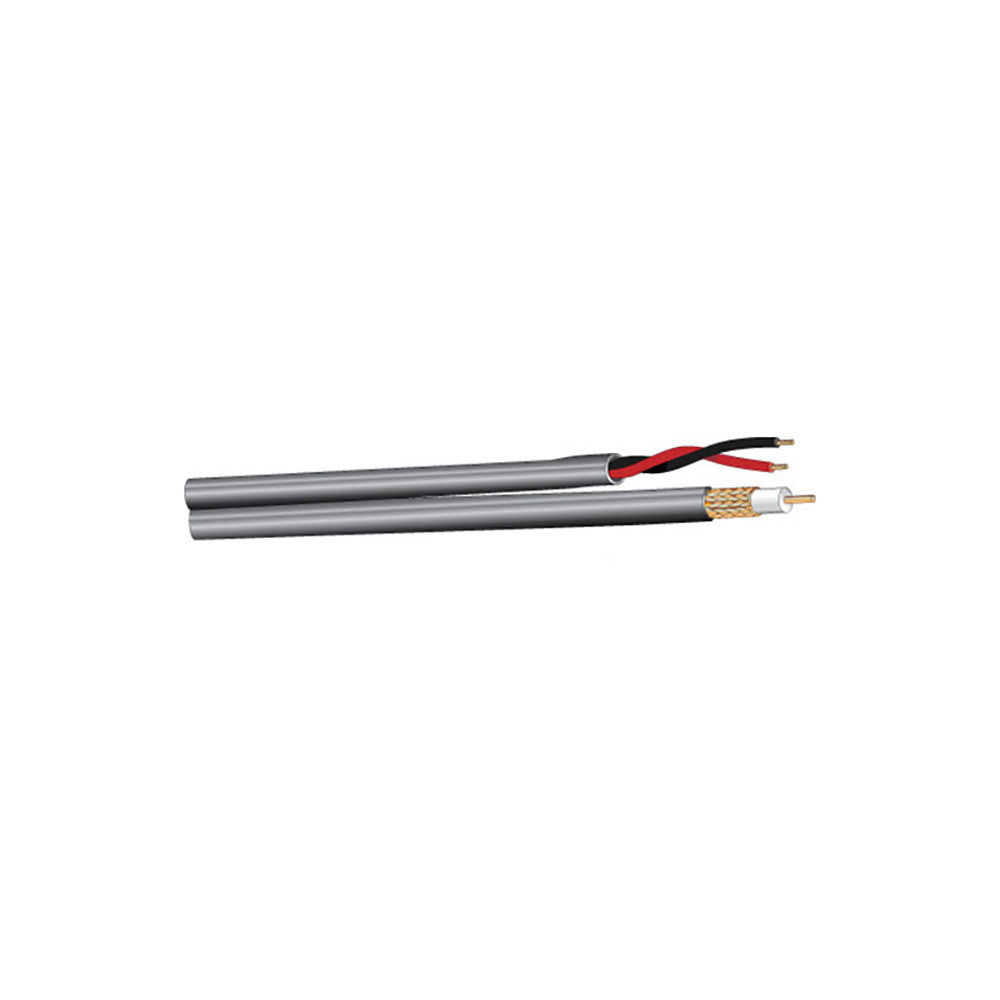

| CONSTRUCTION & DIMENSIONS | - | |
| Component | Video | Power |
| CONDUCTOR PARAMETER | - | |
| Number of Conductors | 1 | 2 |
| AWG Size | 20 | 18 |
| Conductor Stranding | Solid | 7x26 |
| Conductor Type | Bare Copper | Bare Copper |
| Nominal DCR | 10.1 Ohm/1000ft | 6.2 Ohm/1000ft |
| INSULATION PARAMETER | - | |
| Insulation Type | Foam Polyethylene | PVC |
| Insulation Thickness | 0.138 in | 0.008 in |
| Insulation Color Code | 1. Black 2.Red | |
| SHIELDING PARAMETER | - | |
| Shield Type | 95% Bare Copper Braid | |
| ELECTRICAL CHARACTERISTICS | - | |
| Nominal Impedance | 75 Ohm | |
| Nom. Cap. Between Conductors | 16.2 pF/ft |
| OVERALL CONSTRUCTION PARAMETERS | - |
| Total Number of Conductors | 3 |
| Jacket Type | PVC - Siamese |
| Nominal Cable O.D. | .232x.465 in |
| Plenum | No |
| NEC UL Rating | CMR |
| RoHS Compliant | Yes |
| Bend Radius | 4.65 in |
| Cable Weight | 48 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | - |
| Nominal Velocity of Propagation (VP) | 80 % |
| UL Flammability | UL1666 Vertical Shaft |
| Operating Range | -20 to 60 Deg C |
| UL Voltage Rating | 300 |
| FREQUENCY (MHz) | ATTENUATION (db/100ft) |
| 1 MHz | 0.29 dB |
| 10 MHz | 0.68 dB |
| 50 MHz | 1.8 dB |
| 100 MHz | 3 dB |
| 200 MHz | 3.54 dB |
| 400 MHz | 4.71 dB |
| 700 MHz | 6.4 dB |
| 900 MHz | 7.33 dB |
| 1000 MHz | 7.8 dB |
