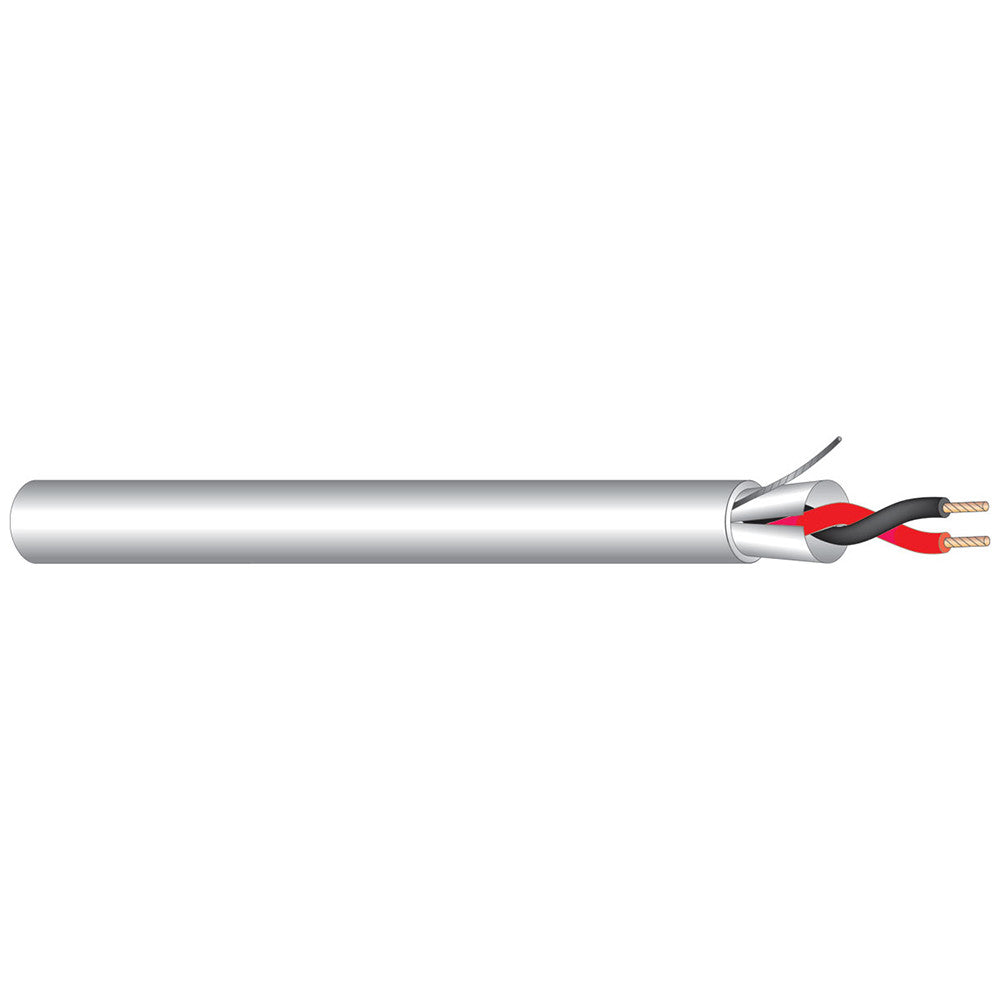

| CONSTRUCTION & DIMENSIONS | - |
| CONDUCTOR PARAMETER | - |
| Number of Conductors | 2 |
| AWG Size | 22 |
| Conductor Stranding | 7x30 |
| Conductor Type | Bare copper |
| Nominal DCR | 17 Ohm/1000ft |
| Cabling Lay Length | 2.5 in |
| Twists/Foot | 4.8 twist/ft |
| INSULATION PARAMETER | - |
| Insulation Type | Polypropylene - PP |
| Insulation Thickness | 0.007 in |
| Insulation Color Code | 1. Black 2.Red |
| SHIELDING PARAMETER | - |
| Shield Type | Overall 100% Aluminum Foil |
| Drain Wire Type | Tinned Copper |
| Drain Wire AWG | 24 AWG |
| ELECTRICAL CHARACTERISTICS | - |
| Nom. Cap. Between Conductors | 34 pF/ft |
| Nom. Cap. Conductor to Shield | 67 pF/ft |
| OVERALL CONSTRUCTION PARAMETERS | - |
| Jacket Type | PVC |
| Jacket Thickness | 0.017 in |
| Nominal Cable O.D. | 0.127 in |
| Plenum | No |
| NEC UL Rating | CMR, CMG |
| RoHS Compliant | Yes |
| Pull Tension | 24 lbs |
| Bend Radius | 1.143 in |
| Cable Weight | 14 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | - |
| UL Flammability | UL1666 Vertical Shaft |
| CSA Flammability | FT4 |
| Operating Range | -20 to 60 Deg C |
| UL Voltage Rating | 300 |
