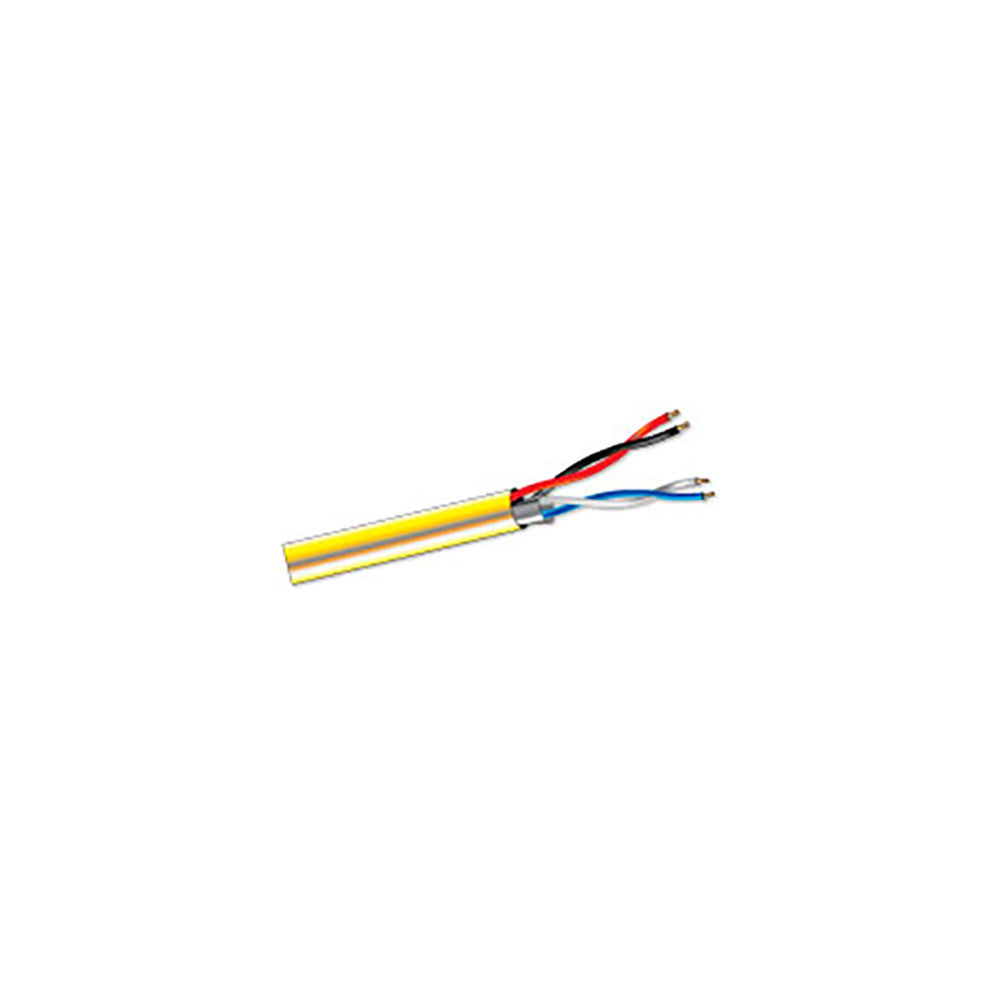

| CONSTRUCTION & DIMENSIONS | ||
| Component | Shielded | Unshielded |
| CONDUCTOR PARAMETER | ||
| Number of Conductors | 2 | |
| Number of Pairs | 1 | |
| AWG Size | 22 | 18 |
| Conductor Stranding | 7x30 | 7x26 |
| Conductor Type | Bare Copper | Bare Copper |
| Nominal DCR | 17 Ohm/1000ft | 6.2 Ohm/1000ft |
| INSULATION PARAMETER | ||
| Insulation Type | Foam Polyethylene | Polypropylene - PP |
| Insulation Thickness | 0.25 in | 0.008 in |
| Insulation Color Code | 1. Blue 2.White | 1. Black 2.Red |
| SHIELDING PARAMETER | ||
| Shield Type | Overall 100% Aluminum Foil | None |
| Drain Wire Type | Tinned Copper | |
| Drain Wire AWG | 24 AWG | |
| ELECTRICAL CHARACTERISTICS | ||
| Nominal Impedance | 100 Ohm | |
| Nom. Cap. Between Conductors | 12.5 pF/ft | |
| Nom. Cap. Conductor to Shield | 22.5 pF/ft |
| OVERALL CONSTRUCTION PARAMETERS | |
| Total Number of Conductors | 4 |
| Jacket Type | PVC |
| Jacket Thickness | 0.30 in |
| Nominal Cable O.D. | 0.255 in |
| Plenum | No |
| NEC UL Rating | CMR |
| RoHS Compliant | Yes |
| Pull Tension | 40 lbs |
| Bend Radius | 2.295 in |
| Cable Weight | 36 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | |
| UL Flammability | UL1666 Vertical Shaft |
| CSA Flammability | FT4 |
| Operating Range | -20 to 60 Deg C |
| UL Voltage Rating | 300 |
