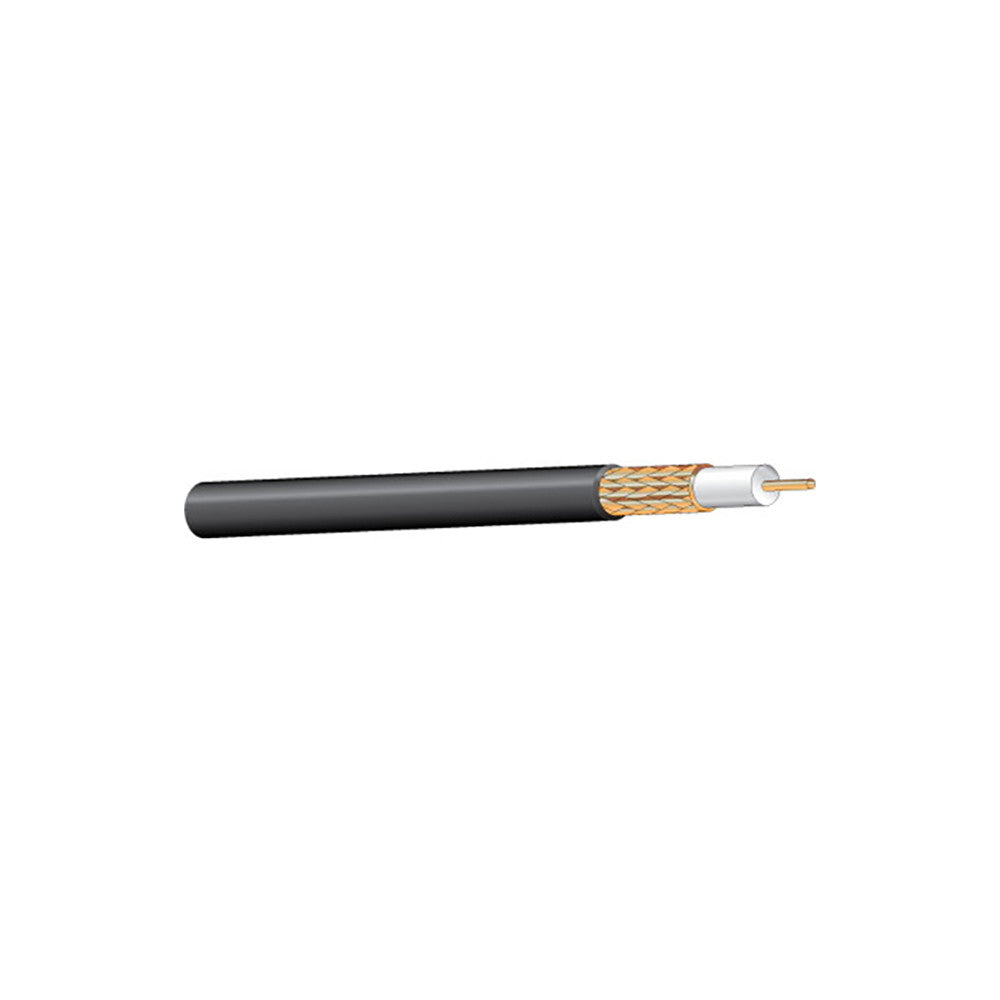

| CONSTRUCTION & DIMENSIONS | - |
| CONDUCTOR PARAMETER | - |
| Number of Conductors | 1 |
| AWG Size | 18 |
| Conductor Stranding | Solid |
| Conductor Type | Bare Copper |
| Nominal DCR | 6.5 Ohm/1000ft |
| INSULATION PARAMETER | - |
| Insulation Type | Foam Polyethylene |
| Insulation Thickness | 0.18 in |
| SHIELDING PARAMETER | - |
| Shield Type | Overall 100% Aluminum Foil |
| Shield Type 2 | 95% Bare Copper Braid |
| ELECTRICAL CHARACTERISTICS | - |
| Nominal Impedance | 75 Ohm |
| Nom. Cap. Between Conductors | 16.2 pF/ft |
| OVERALL CONSTRUCTION PARAMETERS | - |
| Jacket Type | PVC |
| Jacket Thickness | 0.033 in |
| Nominal Cable O.D. | 0.27 in |
| Plenum | No |
| NEC UL Rating | CMR |
| RoHS Compliant | Yes |
| Pull Tension | 70 lbs |
| Bend Radius | 2.7 in |
| Cable Weight | 36 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | - |
| Nominal Velocity of Propagation (VP) | 82 % |
| UL Flammability | UL1666 Vertical Shaft |
| Operating Range | -20 to 60 Deg C |
| UL Voltage Rating | 300 |
| FREQUENCY (MHz) | ATTENUATION (db/100ft) |
| 1 MHz | 0.24 dB |
| 10 MHz | 0.52 dB |
| 50 MHz | 1.18 dB |
| 100 MHz | 1.83 dB |
| 200 MHz | 2.73 dB |
| 400 MHz | 3.95 dB |
| 700 MHz | 5.38 dB |
| 900 MHz | 6.13 dB |
| 1000 MHz | 6.45 dB |
