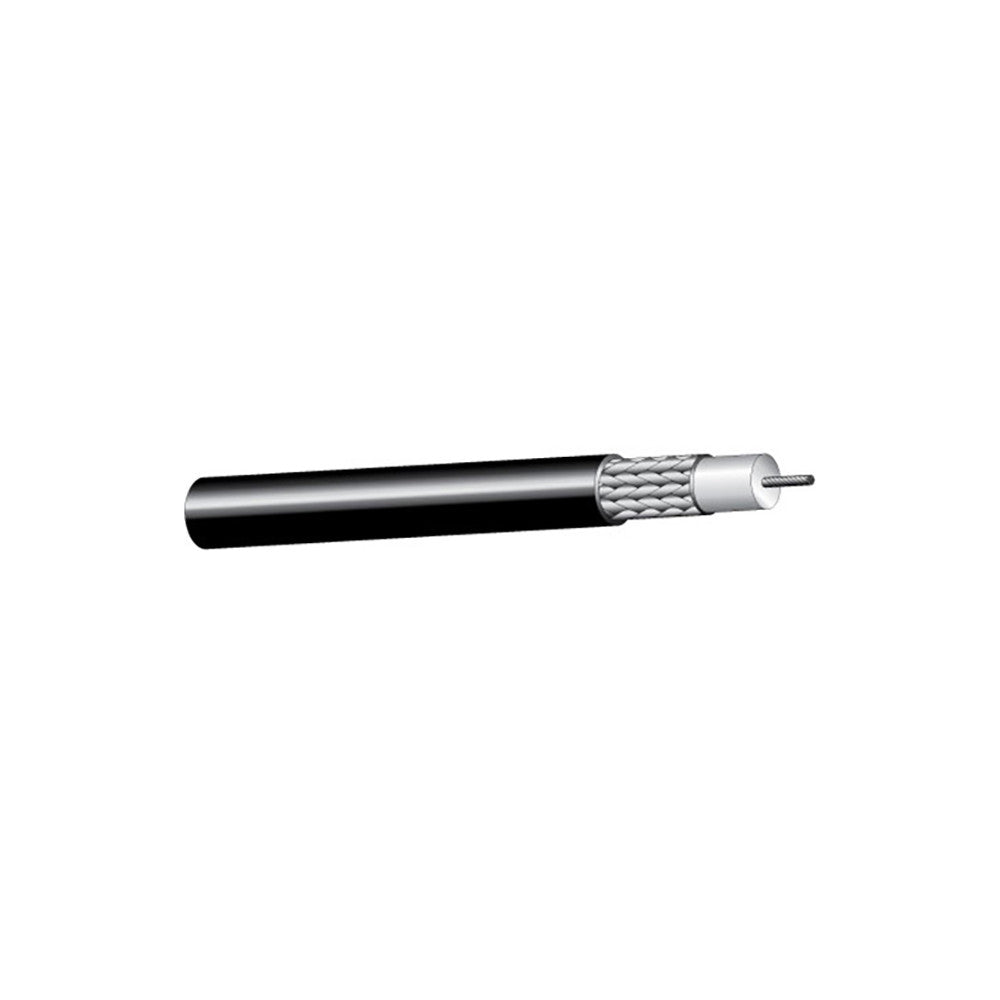

| CONSTRUCTION & DIMENSIONS | |
| CONDUCTOR PARAMETER | |
| Number of Conductors | 1 |
| AWG Size | 13 |
| Conductor Stranding | 7x20 |
| Conductor Type | Bare copper |
| Nominal DCR | 1.9 Ohm/1000ft |
| INSULATION PARAMETER | |
| Insulation Type | Foam Polyethylene |
| Insulation Thickness | 0.28 in |
| SHIELDING PARAMETER | |
| Shield Type | 100% Aluminim Foil + 95% Tinned Copper Braid |
| ELECTRICAL CHARACTERISTICS | |
| Nominal Impedance | 50 Ohm |
| Nom. Cap. Between Conductors | 25 pF/ft |
| OVERALL CONSTRUCTION PARAMETERS | |
| Jacket Type | PVC |
| Jacket Thickness | 0.044 in |
| Nominal Cable O.D. | 0.405 in |
| Plenum | No |
| NEC UL Rating | CM |
| RoHS Compliant | Yes |
| Bend Radius | 4.05 in |
| Cable Weight | 105 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | |
| Nominal Velocity of Propagation (VP) | 80 % |
| UL Flammability | UL1685 |
| Operating Range | -40 to 75 Deg C |
| UL Voltage Rating | 300 |
| FREQUENCY (MHz) | ATTENUATION (db/100ft) |
| 1 MHz | 0.2 dB |
| 10 MHz | 0.6 dB |
| 50 MHz | 1.3 dB |
| 100 MHz | 2 dB |
| 200 MHz | 2.8 dB |
| 400 MHz | 4 dB |
| 900 MHz | 6.7 dB |
| 1000 MHz | 7.2 dB |
| FREQUENCY [MHz] | MAX POWER RATING [W] |
| 1 MHz | 7,950 W |
| 10 MHz | 2,761 W |
| 50 MHz | 1,122 W |
| 100 MHz | 748 W |
| 200 MHz | 494 W |
| 400 MHz | 326 W |
| 700 MHz | 235 W |
| 900 MHz | 205 W |
| 1,000 MHz | 194 W |
| 4,000 MHz | 110 W |
