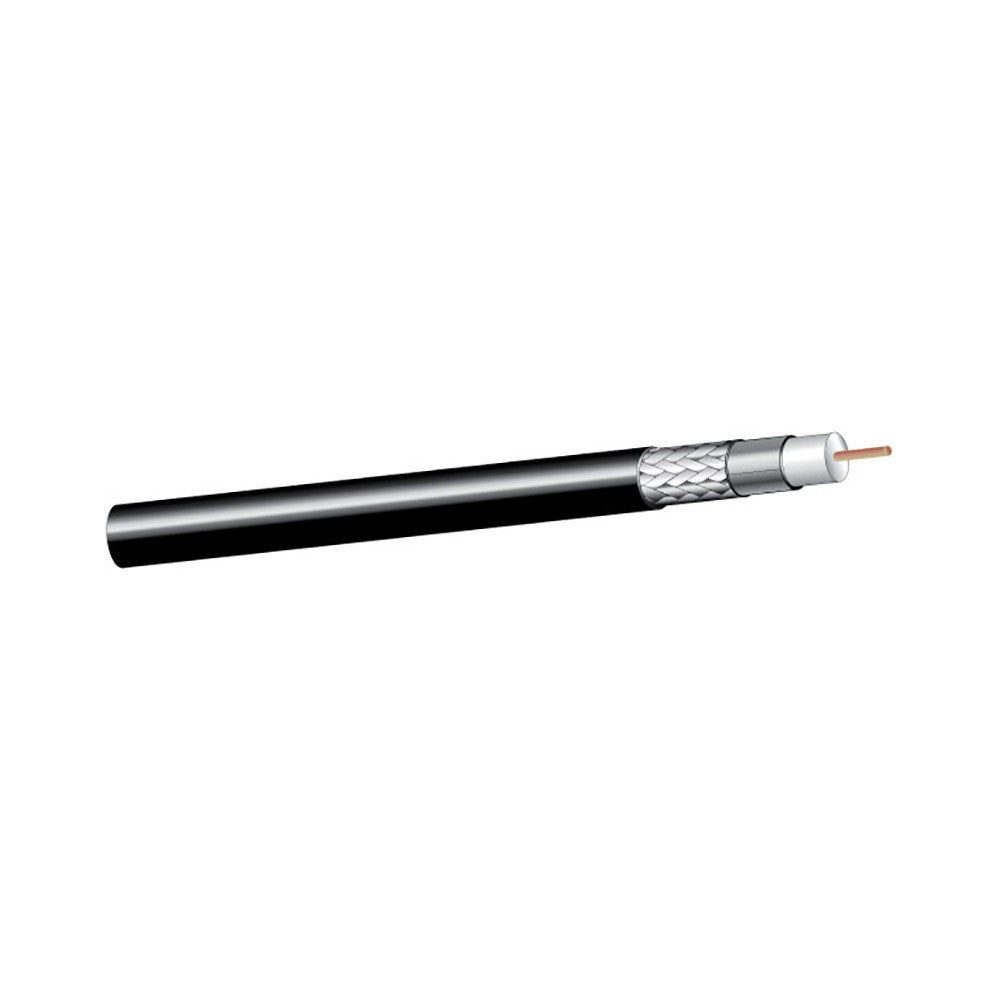

| CONSTRUCTION & DIMENSIONS | - |
| CONDUCTOR PARAMETER | - |
| Number of Conductors | 1 |
| AWG Size | 18 |
| Conductor Stranding | Solid |
| Conductor Type | Bare copper |
| Nominal DCR | 6.5 Ohm/1000ft |
| INSULATION PARAMETER | - |
| Insulation Type | Foam Polyethylene |
| Insulation Thickness | 0.18 in |
| SHIELDING PARAMETER | - |
| Shield Type | Overall 100% Aluminum Foil |
| Shield Type 2 | Aluminum Braid |
| ELECTRICAL CHARACTERISTICS | - |
| Nominal Impedance | 75 Ohm |
| Nom. Cap. Between Conductors | 16.2 pF/ft |
| OVERALL CONSTRUCTION PARAMETERS | - |
| Jacket Type | PVC |
| Jacket Thickness | 0.026 in |
| Nominal Cable O.D. | 0.265 in |
| Plenum | No |
| NEC UL Rating | CATV, CM |
| RoHS Compliant | Yes |
| Pull Tension | 70 lbs |
| Bend Radius | 2.65 in |
| Cable Weight | 32 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | - |
| Nominal Velocity of Propagation (VP) | 82 % |
| UL Flammability | UL1685 |
| Operating Range | -20 to 60 Deg C |
| UL Voltage Rating | 300 |
| FREQUENCY (MHz) | ATTENUATION (db/100ft) |
| 5 MHz | 0.57 dB |
| 55 MHz | 1.45 dB |
| 100 MHz | 1.85 dB |
| 270 MHz | 3.07 dB |
| 400 MHz | 3.85 dB |
| 540 MHz | 4.6 dB |
| 750 MHz | 5.4 dB |
| 1000 MHz | 6.3 dB |
| 1450 MHz | 8.05 dB |
| 2250 MHz | 9.99 dB |
| 3000 MHz | 11.9 dB |
