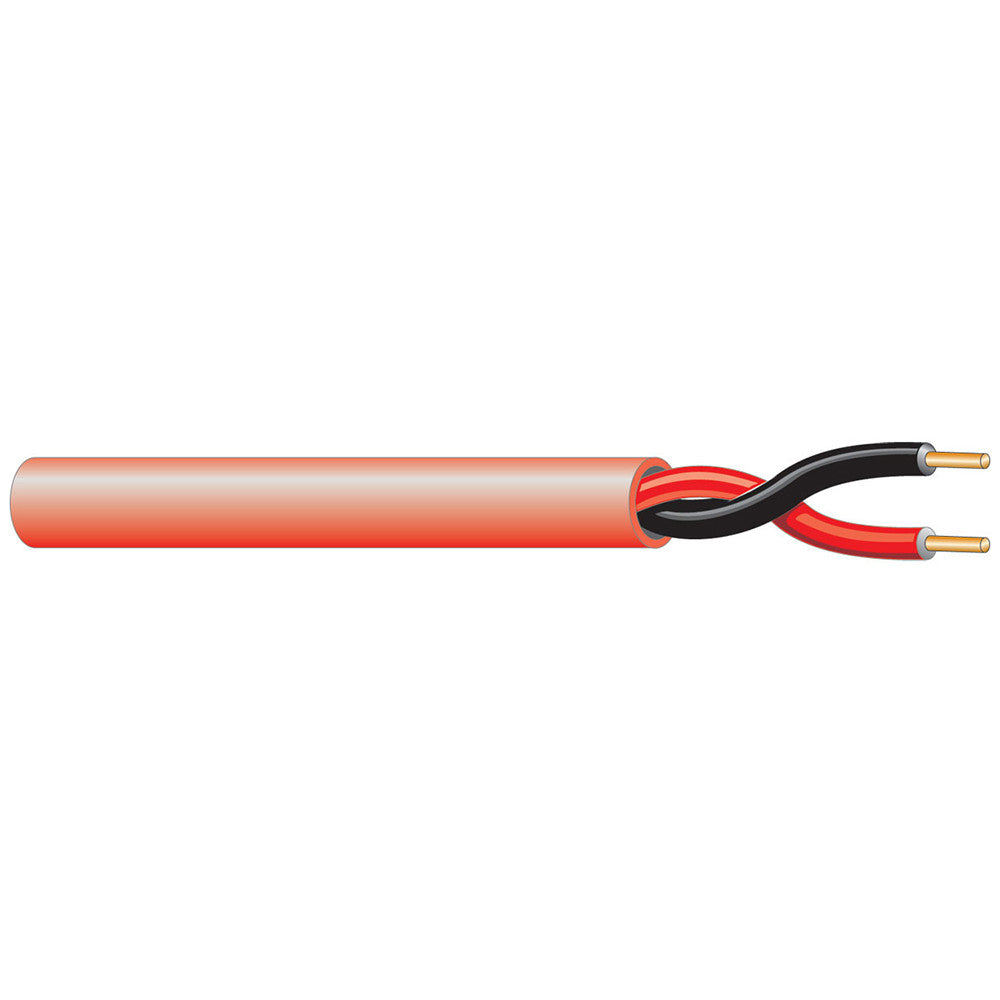

| CONSTRUCTION & DIMENSIONS | - |
| CONDUCTOR PARAMETER | - |
| Number of Conductors | 2 |
| AWG Size | 16 |
| Conductor Stranding | Stranded |
| Conductor Type | Bare Copper |
| Nominal DCR | 4.1 Ohm/1000ft |
| Cabling Lay Length | 2.75 in |
| Twists/Foot | 4.4 twist/ft |
| INSULATION PARAMETER | - |
| Insulation Type | Polypropylene - PP |
| Insulation Thickness | 0.008 in |
| Insulation Color Code | 1. Black 2.Red |
| SHIELDING PARAMETER | - |
| Shield Type | None |
| ELECTRICAL CHARACTERISTICS | - |
| Nom. Cap. Between Conductors | 23 pF/ft |
| OVERALL CONSTRUCTION PARAMETERS | - |
| Jacket Type | PVC |
| Jacket Thickness | 0.022 in |
| Nominal Cable O.D. | 0.168 in |
| Plenum | No |
| NEC UL Rating | FPLR |
| RoHS Compliant | Yes |
| Pull Tension | 62 lbs |
| Bend Radius | 1.512 in |
| Cable Weight | 25 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | - |
| UL Flammability | UL1666 Vertical Shaft |
| Operating Range | -20 to 60 Deg C |
| UL Voltage Rating | 300 |
