Description
Four channels of passive and isolated microphone splitting in a single space rack panel.
Ideal for splitting and isolating mic level sends to a video truck or a remote broadcast, the MLTSP1X3 provide one direct and one or two transformer isolated outputs per channel respectively.

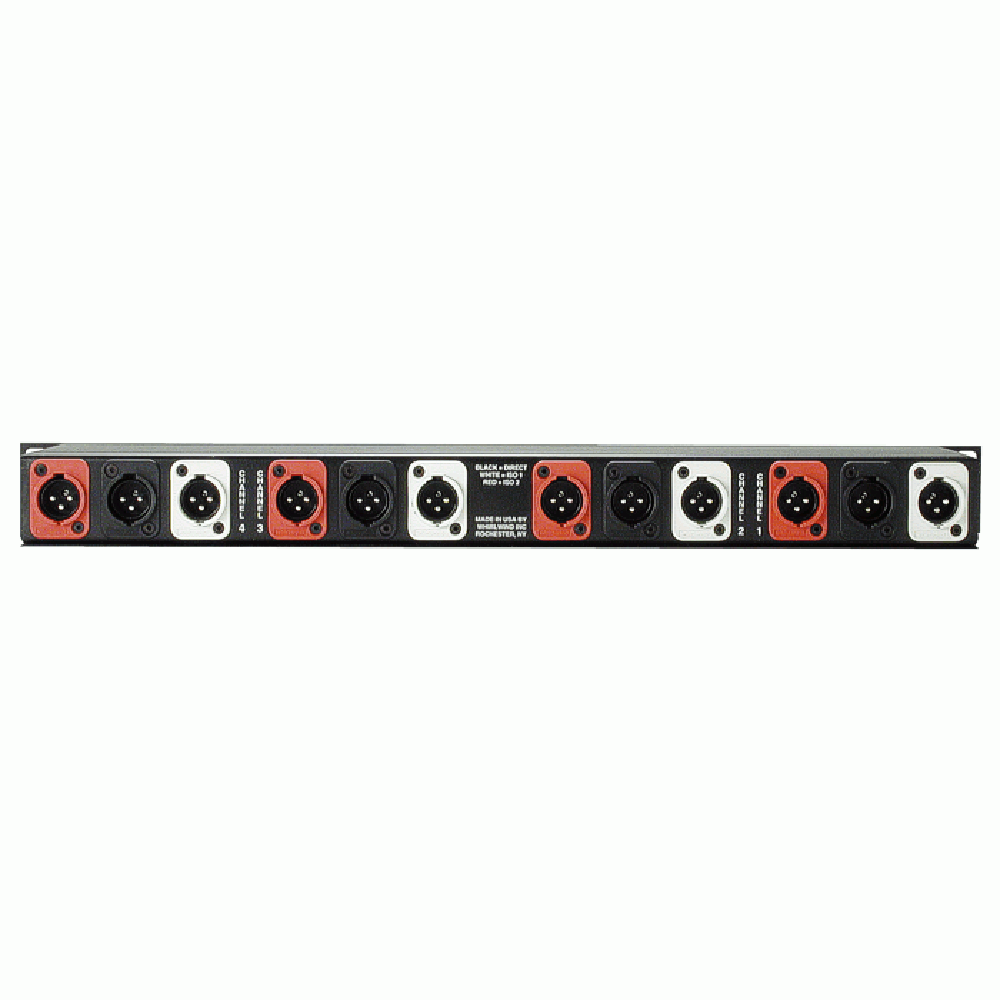

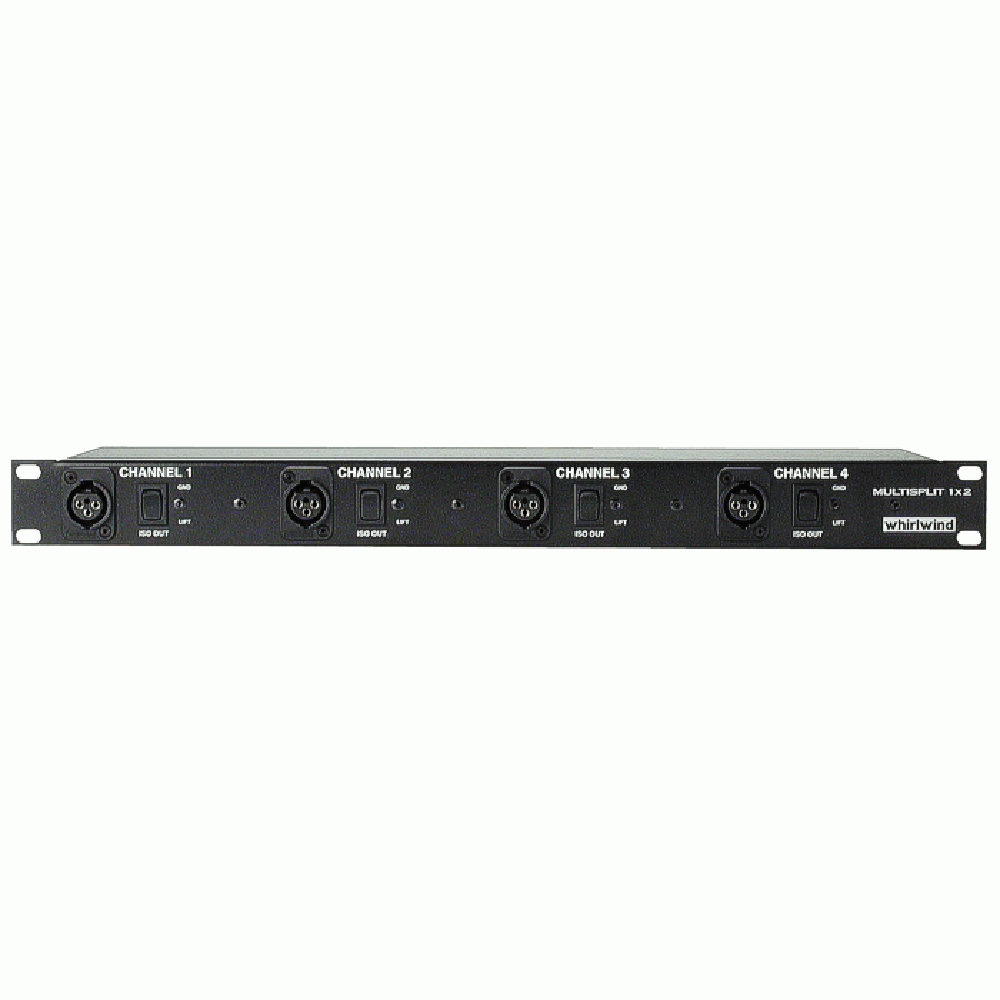

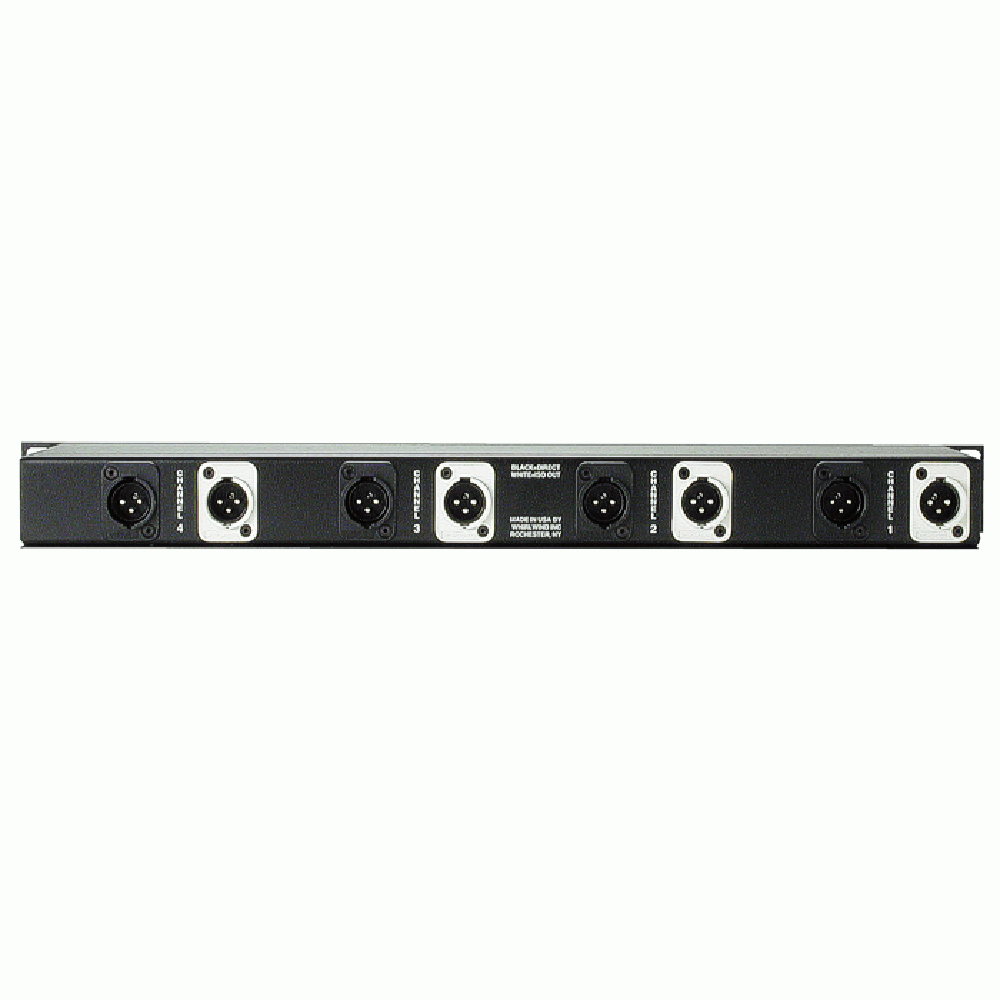

Each isolated output has a front panel ground lift switch. The inputs (female XLR) are located on the front panel and outputs (male XLR) are located on the rear panel.
- Operating Level: -50dB to +4dBu
- Frequency Response: 20Hz-20kHz ±1dB
- Outputs:MLTSP1X3: 1 direct, 2 isolated
