Overview

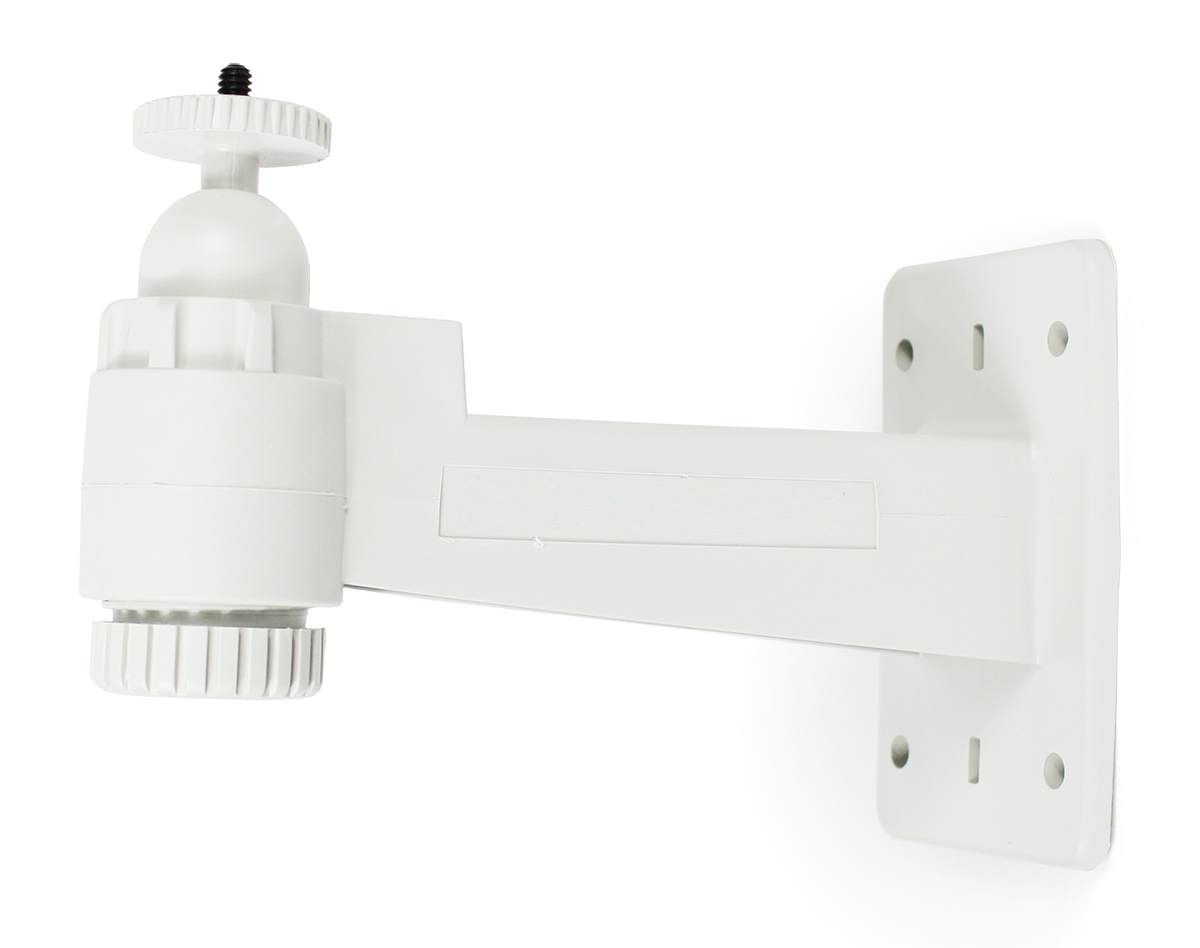

A sturdier and more robust option for Williams Sound IR mounting hardware and it mounts directly to the junction box when running conduit. It features a ball and socket design with 360° swivel and 90° tilt capability, 1/4”-20 male stud mount, 7” extension, and the ability to conceal connected cables. This mount is able to support greater weight load, and can also be inverse mounted.
Specifications
| Type | CCTV Camera Mount |
| Construction | Engineered Plastic |
| Support Weight | 10 lbs (4.5kg) |
| Swivel | 360° |
| Tilt | 90° |
| Thread Size | 1/4”-20 |
| Extension | 7” (177.8mm) |
| Shipping Dimensions | 7.5 x 5 x 3” (190.5 x 127 x 76.2mm) (WxHxD) |
| Weight | 0.6 lb (0.23kg) |
| Color | Light Gray |
| Finish | Fused Epoxy |
| Package Weight | 0.65 lb |
| Box Dimensions (LxWxH) | 8.2 x 5.3 x 3.2” |
