Overview:

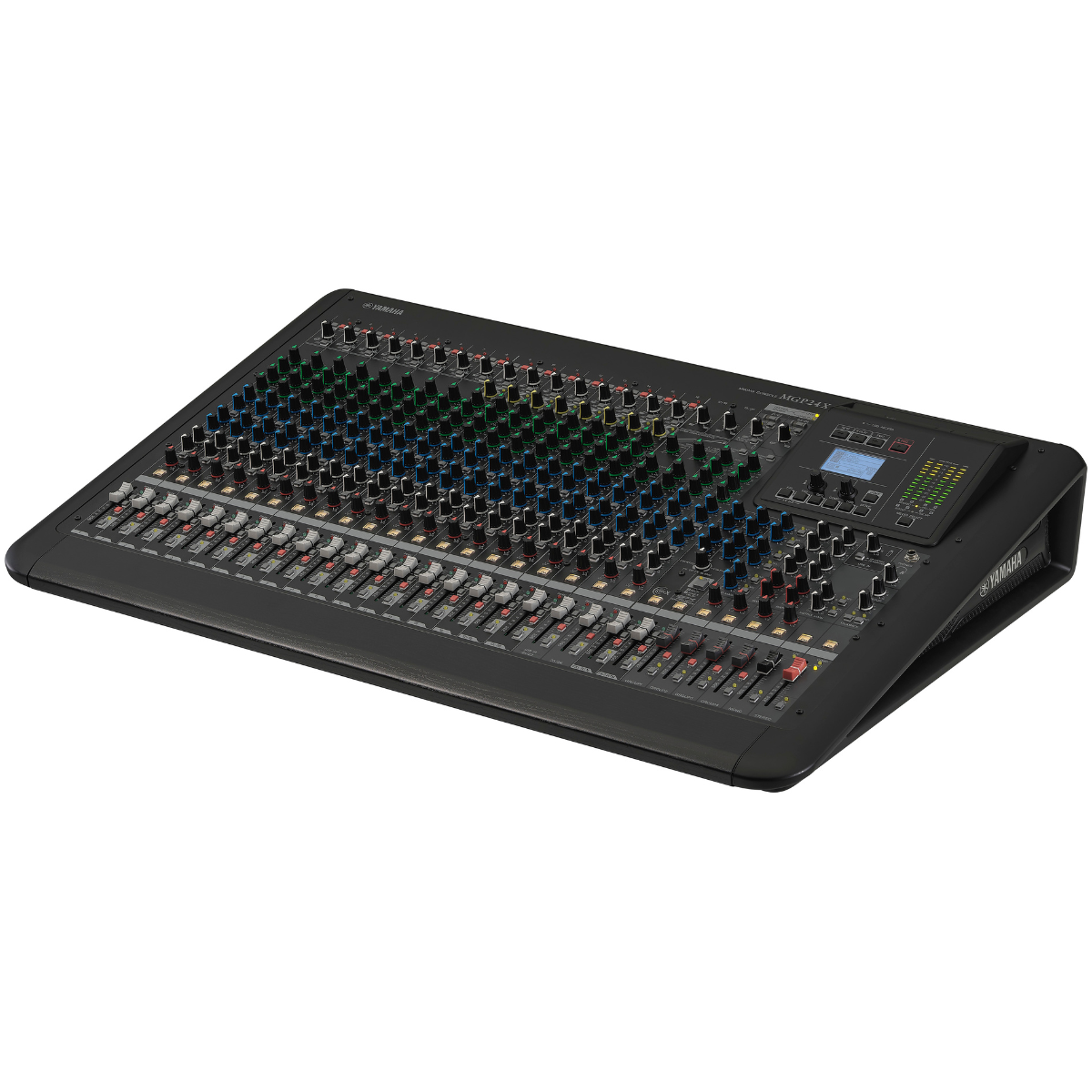

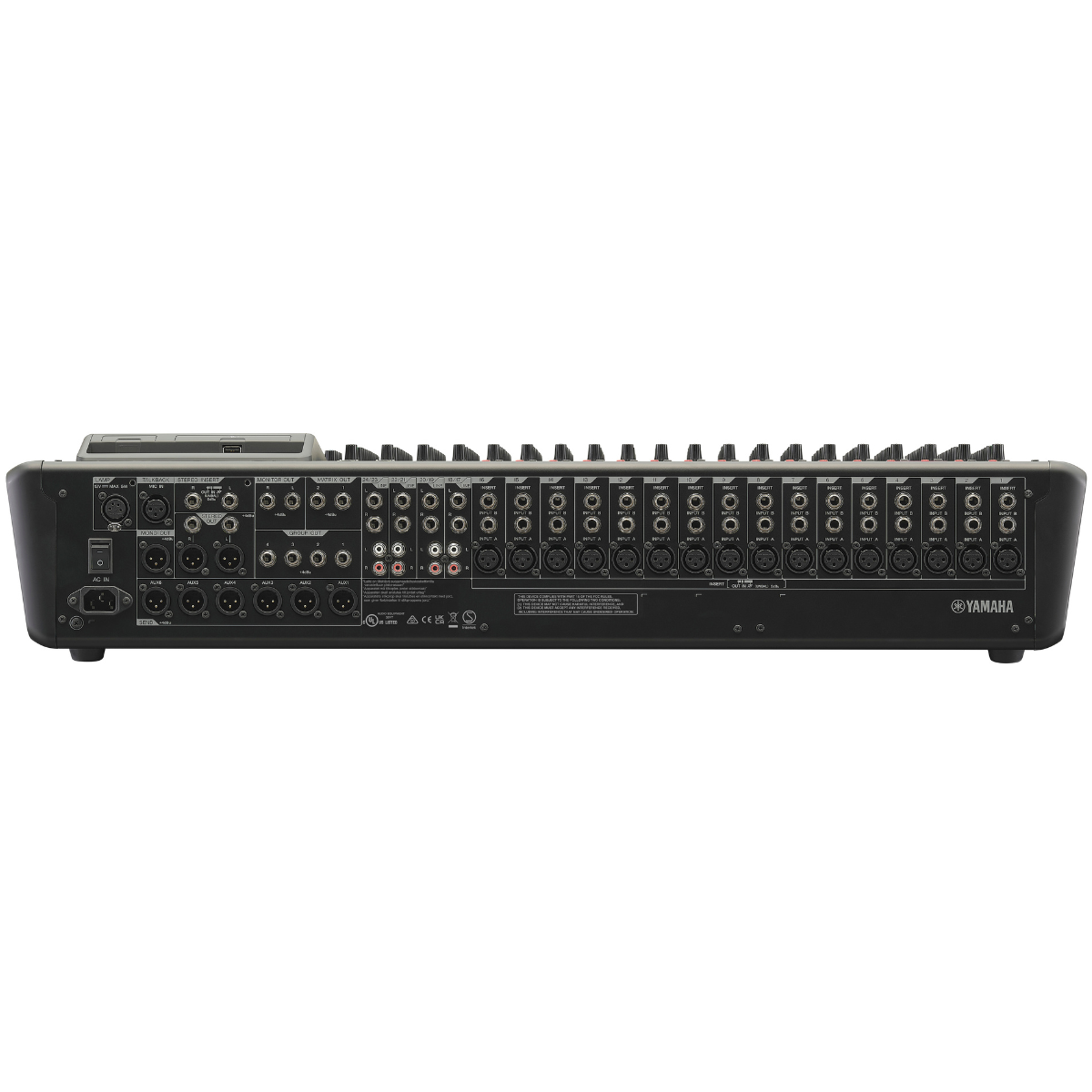

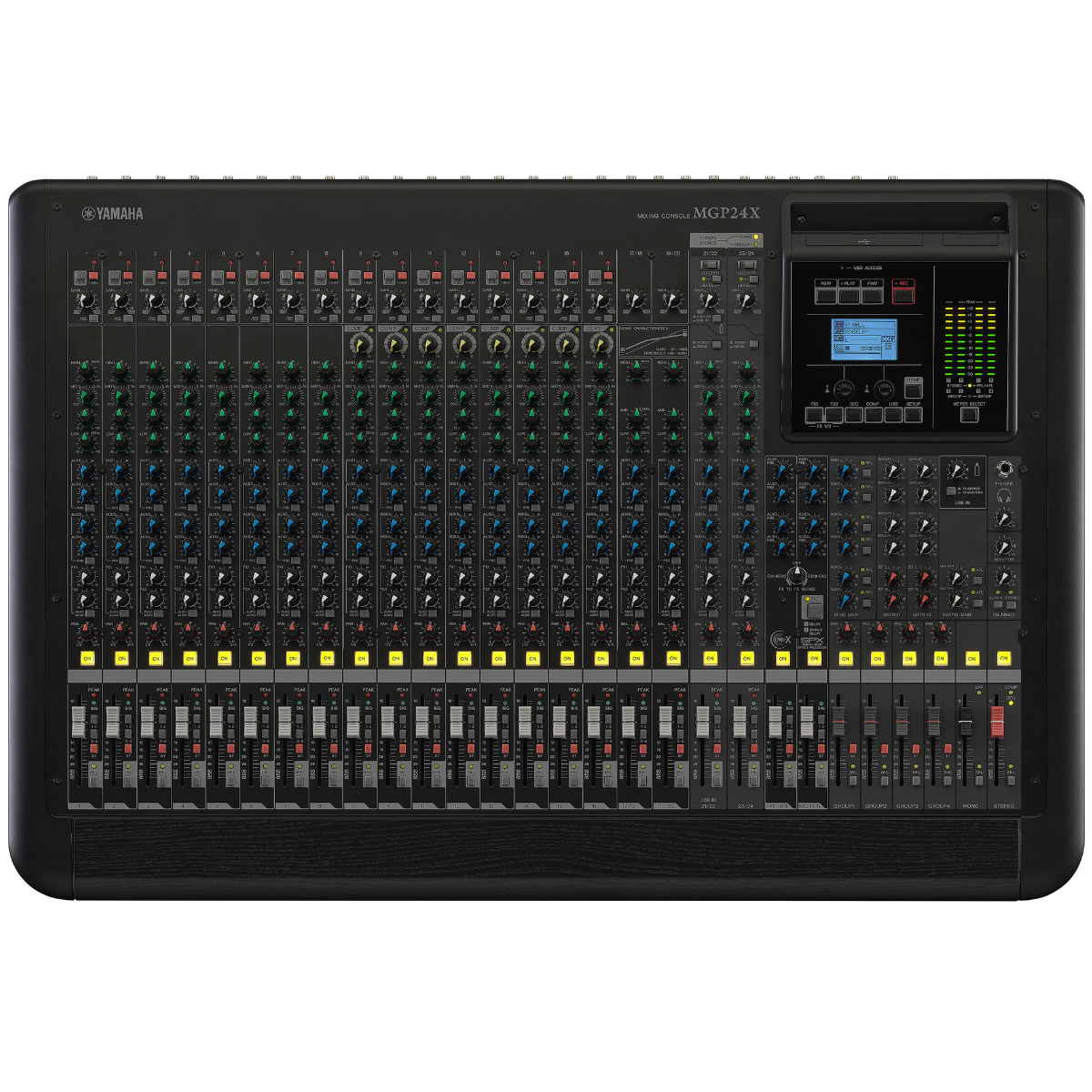

The Yamaha MGP24XA is a 24-channel hybrid analog mixing console that combines Yamaha’s renowned analog design with advanced digital processing. Designed for houses of worship, clubs, theaters, live sound, conference facilities, and production environments, the mixer features 16 Class-A D-PRE microphone preamps, integrated REV-X and SPX effects processors, USB recording, iOS device connectivity, and Yamaha’s Hybrid Channel DSP technology. The MGP24XA delivers professional-grade sound quality while providing the workflow simplicity of a traditional analog mixer.
Features:
16 Class-A D-PRE microphone preamps
Hybrid analog and digital architecture
REV-X studio-quality reverb
SPX multi-effects processor
Hybrid Channel DSP processing
1-Knob compressors
X-pressive EQ technology
USB recording to external media
iPhone and iPod integration
Auto Ducker function
Auto Leveler function
Stereo Image controller
Rugged metal chassis construction
Specs:
| Product Type | Hybrid Analog Mixing Console |
| Mixing Channels | 24 Line Inputs (16 Mono + 4 Stereo) |
| Mic Inputs | 16 D-PRE Mic Preamps |
| Group Buses | 4 |
| Stereo Bus | 1 |
| AUX Sends | 6 AUX Sends |
| FX Sends | 2 FX Sends |
| Matrix Output | 1 Matrix Out |
| Phantom Power | +48V Per Channel |
| Onboard Effects | REV-X Reverb (8 Programs), SPX Multi-Effects (16 Programs) |
| Compressor | 1-Knob Compressors |
| EQ | X-pressive 3-Band EQ |
| USB Functions | USB Recording, USB Playback, iPod/iPhone Connectivity |
| Power Requirement | 100-240V AC, 50/60Hz |
| Power Consumption | 86W Maximum |
| THD | 0.02% |
| Frequency Response | 20Hz - 20kHz (+0.5/-1.0 dB) |
| Dimensions | 32.2 x 22.2 x 6.7 in |
| Volume | 4,793.3 in³ |
| Weight | 34.2 lb |
