Overview:
TF1 Series Digital Mixing Console

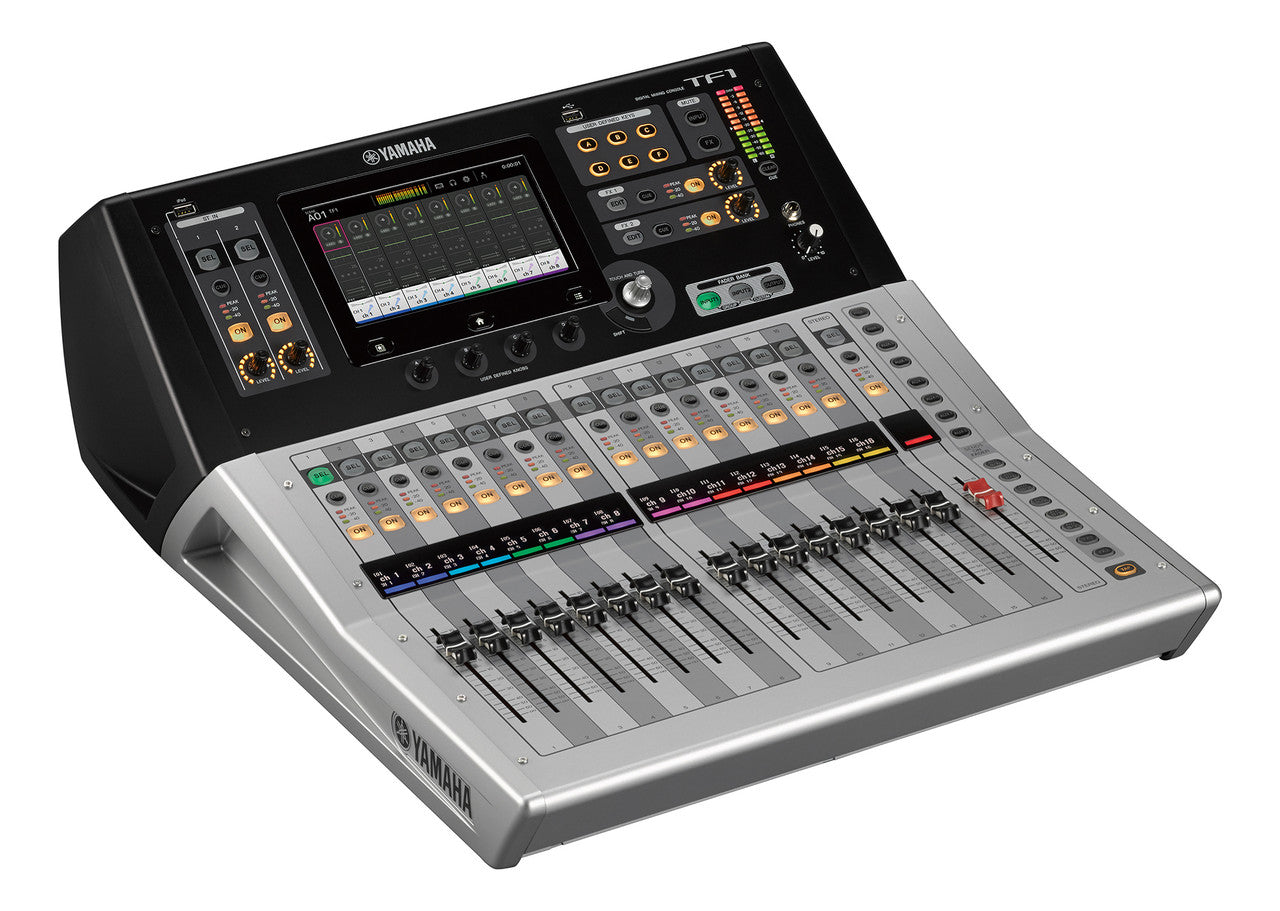

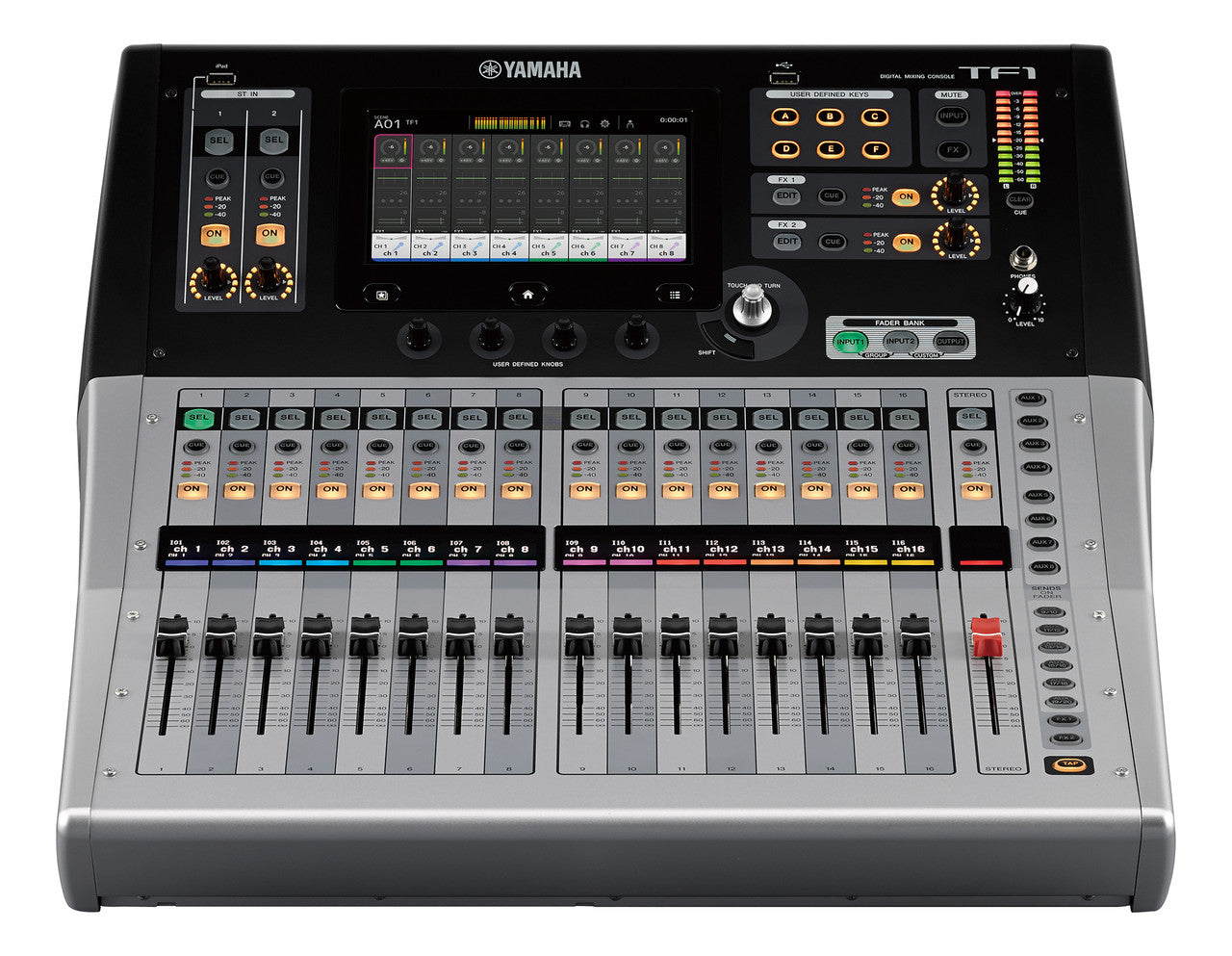

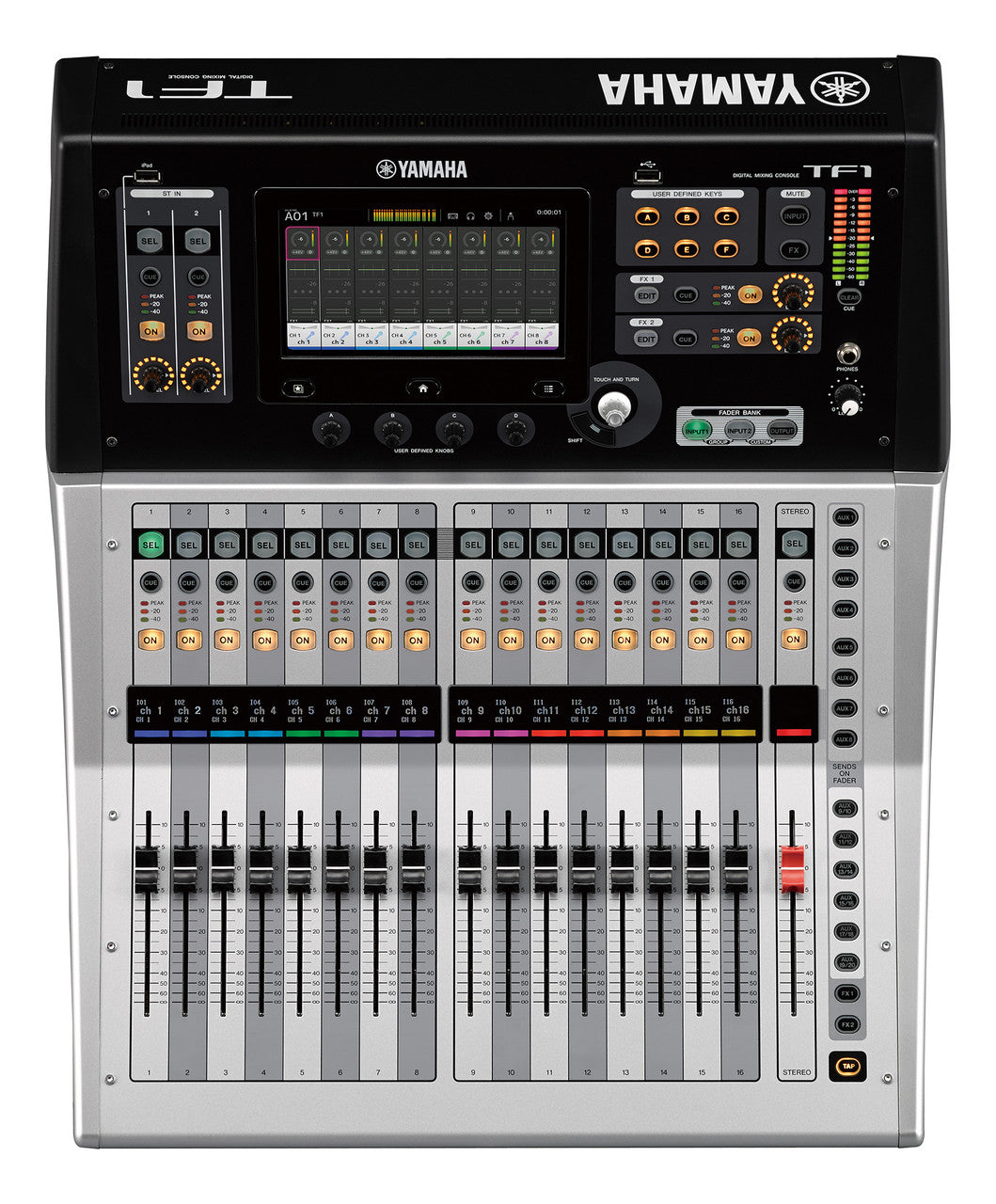

TF1 Compact Digital Mixing Console
Yamaha has always made it a mission to stay in touch with the needs of sound engineers worldwide. The outcome is evident in the success of the recent CL and QL series digital mixing consoles, and the flagship RIVAGE PM10. The key to success has always been in supporting the user’s creativity. Creativity is most effective when unrestricted, and now Yamaha has created a new digital mixing console that gives the user’s intuition even freer rein. TouchFlow Operation™ introduced in the TF series consoles allows the user to respond to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of refinement. With the TouchFlow Operation interface optimized for touch panel control, experienced engineers as well as newcomers to the field will find it easier than ever to achieve the ideal mix. Recallable D-PRE™ preamplifiers support sound quality that will satisfy the most discerning professional ears, while advanced live recording features and seamless operation with high-performance I/O racks give these compact digital mixers capabilities that make them outstanding choices for a wide range of applications. Experience the intuitive control and creative freedom that a truly evolved digital console can provide.
TouchFlow Operation™ – Smooth, Natural Control Flow
Yamaha digital consoles have always been designed with input from leading engineers worldwide to ensure that the most efficient, intuitive operation is achieved. The highly regarded Selected Channel and Centralogic™ interfaces attest to the success of that approach. The TF series combines Yamaha know-how with new input from the field and the latest touch-screen technology to deliver an evolved experience in console operation. Smooth setup and operation, practical presets and scenes, refined design, and software applications that integrate seamlessly with the entire system: these elements comprise TouchFlow Operation, a new concept in console interfaces that offers unprecedented comfort and convenience in small consoles, for a wide range of users and applications.
Touch Operation for Intimate Control
Refined for the smoothest possible operation via touch-panel control, the TF user interface offers a smooth workflow that can be an advantage in any mixing situation. The display content has been specifically designed for easy, direct accessibility, with a layout that promotes the most natural, efficient mixing. Touch panel operation is as easy as shaping the sound with your fingertips.
Touch & Turn Knob Offers Extra Control Precision
When you need extra precision for a fine EQ or other adjustment, the physical Touch & Turn knob is always available right beside the touch panel. There are also four User Defined Knobs below the panel that can be assigned to control compressor threshold, EQ gain, or other parameters you need fast, direct access to while mixing. The knobs always affect the currently selected channel.
Traditional Overview and Selected Channel Interfaces
Like the CL series consoles, operation is based around Overview and Selected Channel windows. The overview display shows the parameters for eight channels at a time, while the Touch & Turn knob provides direct access to gain, 1-knob EQ™, 1-knob COMP™, gate threshold, effect send level, pan, and other parameters. Touch the highlighted parameter a second time to switch to the Selected Channel display when you need access to detailed parameters for finer control.
Specs:
Max I/O Capacity
48x Input / 22x Output
Number of Analog Input Channels
16 (16 Mono / 2 Stereo)
Number of Mic Preamps
24
Number of Analog Output Channels
16
Faders & Level Adjustment
17x 3.9" / 100 mm Motorized Fader
Built-In Effects
8x Effect (Type Unspecified)
Analog Inputs
1x 1/4" TS Footswitch Input
2x Stereo RCA Unbalanced Input
16x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x Stereo RCA Stereo Line Input
Show More
Analog Outputs
16x XLR Output
1x 1/4" Headphone Output
Digital I/O
1x RJ45 (Network)
USB I/O
1x USB-B (Host Connection)
2x USB-A (Control, External Memory)
Rack Mountable
No
Mixer
Max I/O Capacity
48x Input / 22x Output
Number of Analog Input Channels
16 (16 Mono / 2 Stereo)
Number of Mic Preamps
24
Number of Analog Output Channels
16
Mix Routing
1x Main LRC
1x Subgroup
6x Stereo Aux Send
8x Mono Aux Send
Groups
8x DCA Group
Presets
Yes
Display
Touchscreen
Faders & Level Adjustment
17x 3.9" / 100 mm Motorized Fader
Signal Processing
Gain/Trim Range
-6 dB to +66 dB
EQ
No
Graphic EQ
Yes
Built-In Effects
8x Effect (Type Unspecified)
Audio Delay
Yes
Digital Audio
Sample Rates
48 kHz
Bit Depth
Record:
24-Bit
Performance
Frequency Response
20 Hz to 20 kHz +0.5/-1.5 dB
Max Input Level
Mic/Line Input:
+30 dBu
Stereo Input:
+10 dBV
Analog Dynamic Range
107 dB at Min Gain
Headphone Output Power
3 mW
75 mW (Max)
I/O Impedance
Combo XLR-1/4" Input:
7.5 Kilohms
Stereo RCA Input:
10 Kilohms
XLR Output:
75 Ohms
Headphone Output:
100 Ohms
Noise Floor
-85 dBu A-Weighted
THD
< 0.05% at Min Gain (+4 dBu)
Signal Generator
Yes

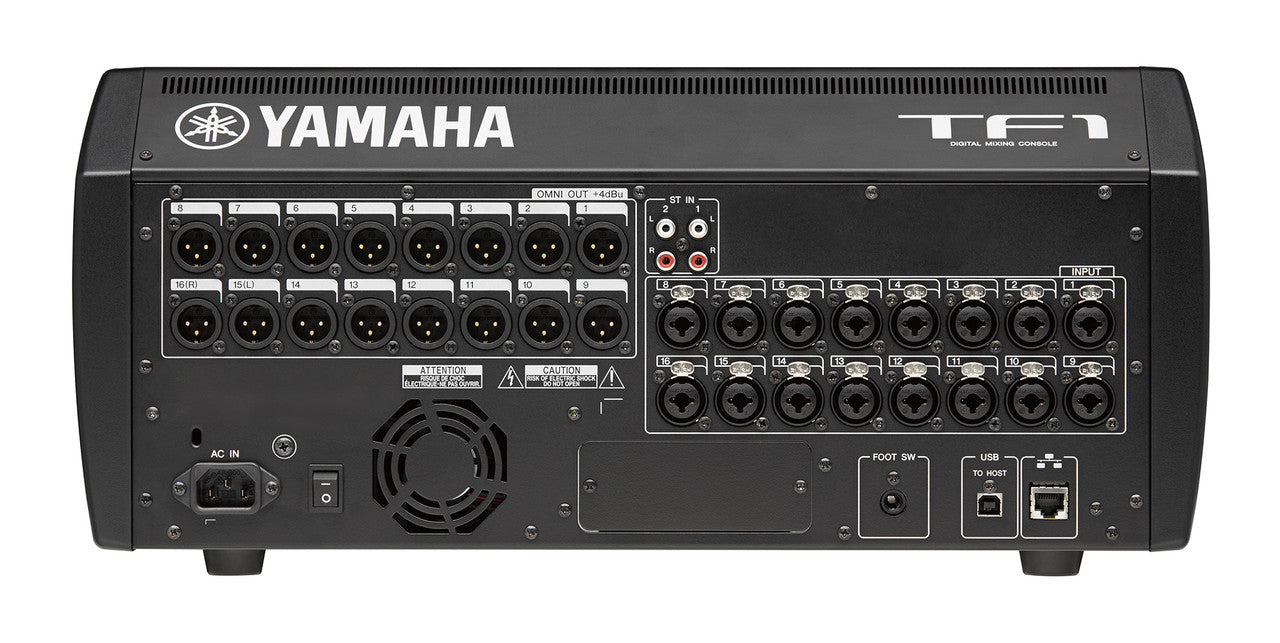

Connectivity
Analog Inputs
1x 1/4" TS Footswitch Input
2x Stereo RCA Unbalanced Input
16x Combo XLR-1/4" TRS Balanced Mic/Line Input
2x Stereo RCA Stereo Line Input
Analog Outputs
16x XLR Balanced Output
1x 1/4" TRS Unbalanced Headphone Output
Digital I/O
1x RJ45 (Network)
MIDI I/O
No
USB I/O
1x USB-B (Host Connection)
2x USB-A (Control, External Memory)
Expansion Ports
1x I/O Card
Mobile App Compatible
Yes: Android & iOS
App Name: TF Editor, TF StageMix, MonitorMix
Functionality: Adjust Settings, Remote Control, Setup, View Live Feed
Recording
Max Multitrack Recording
34 Tracks
File Format Support
Playback: MP3, WAV
Record: WAV
Compatibility
OS Compatibility
Android/iOS
Power
Input Power
100 to 240 VAC, 50 / 60 Hz
Physical
Rack Mountable
No
Dimensions
20.1 x 8.9 x 23.6" / 510 x 225 x 599 mm
Weight
29.8 lb / 13.5 kg
Packaging Info
Package Weight
39.35 lb
Box Dimensions (LxWxH)
28 x 24.5 x 12.75"
