Overview
Yamaha designed the new VXC4 speakers to accommodate a growing list of applications in the installation market. While these speakers deliver quintessential Yamaha sound quality, they have also been carefully designed for safe and easy installation. Featuring both ceiling and surface mount options, these speaker series include a comprehensive range of models that are available in either black or white, or can be painted to match the interior of any application.
Features
-
Ceiling speakers for any application
-
Safe, seamless installation
-
Pursuing the best sound for installation
-
Speaker Design
-
Paintable speakers for your unique room design
-
EN54 compatible version with uncompromised performance
Specifications
| General specifications | VXC4 | |
|---|---|---|
| Speaker type |
Full-range, Bass-reflex |
|
| Frequency range (-10dB) |
80Hz - 20kHz (Half-space:2π) |
|
| Nominal coverage |
130° conical (Half-space:2π) |
|
| Components | LF-HF |
4" full-range |
| Power rating | NOISE |
30W |
| PGM |
60W |
|
| PEAK |
120W |
|
| Nominal impedance |
8Ω |
|
| Transformer taps | 100V |
30W (330Ω), 15W (670Ω), 7.5W (1.3kΩ) |
| 70V |
30W (170Ω), 15W (330Ω), 7.5W (670Ω), 3.8W (1.3kΩ) |
|
| SPL | Sensitivity (1W; 1m on axis) |
87dB SPL (Half-space:2π) |
| Peak (Calculated) |
108dB SPL (1m, Calculated based on power rating and sensitivity, exclusive of power compression) |
|
| I/O connectors |
1 x Euroblock (4P) : (Input: + / -, Loop Thru: + / -) |
|
| Finish |

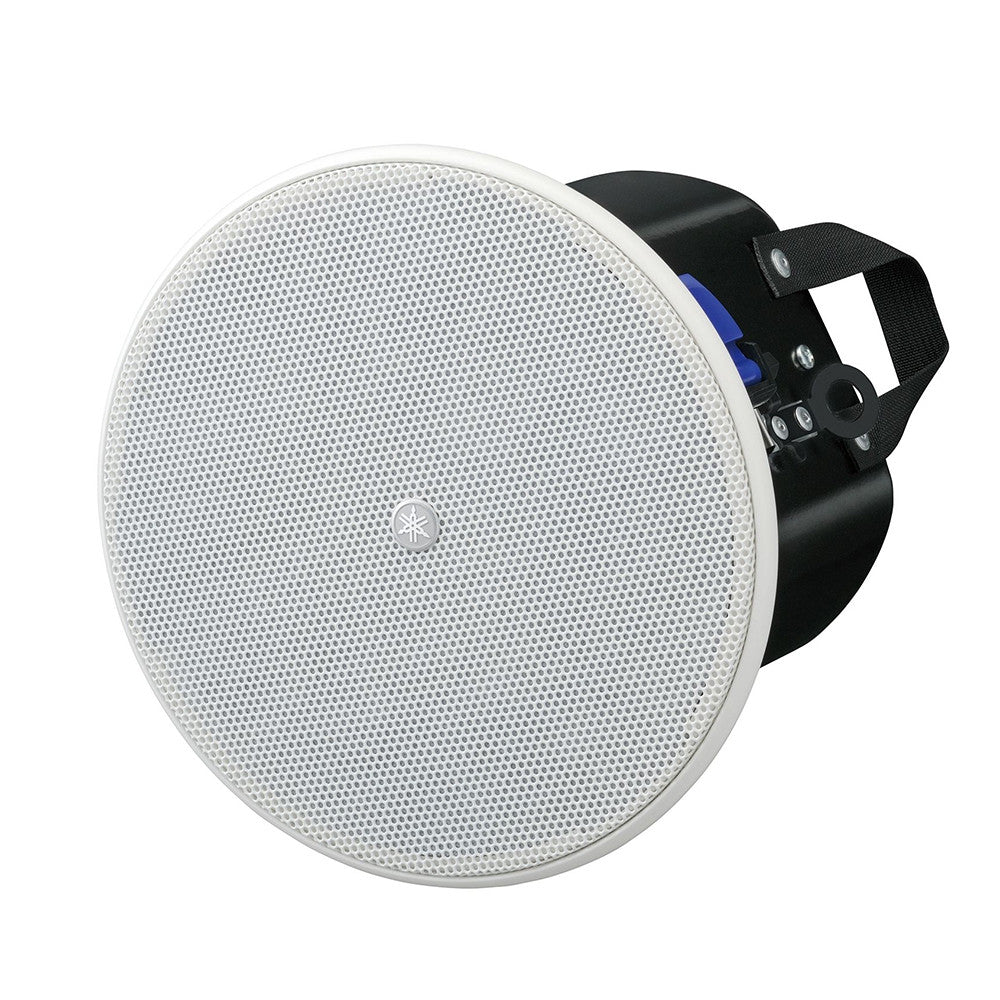

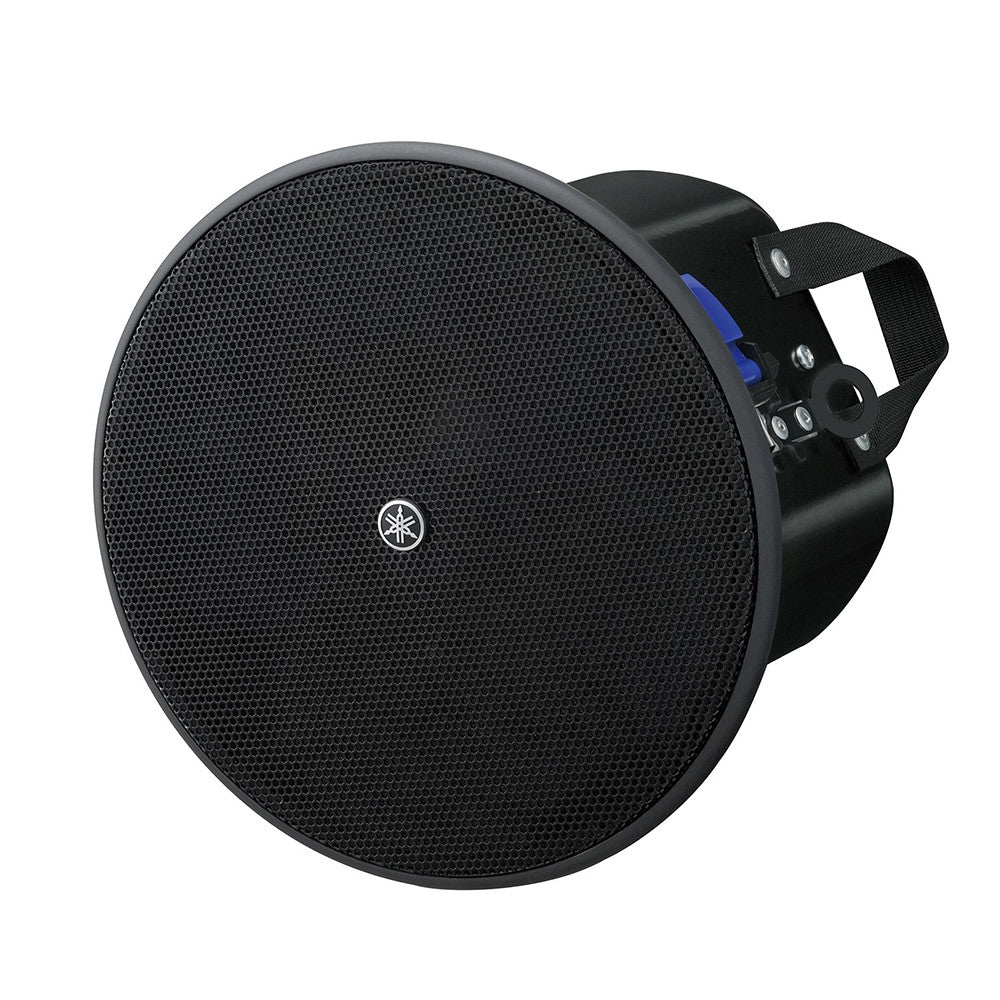

VXC4: Black / VXC4W: White |
|
| Dimensions | Diameter |
225mm (8.9") |
| D |
195mm (7.7") |
|
| Net weight |
2.6kg (5.7lbs) |
|
| Cutout size |
Ø186 mm (Ø7-5/16") |
|
| Required ceiling board thickness |
5 mm – 35 mm |
|
| Accessories |
O-ring, Tile Rail, Cutout Template |
|
| Packaging |
Packaged in pairs |
|
| Certificate |
UL1480, UL2043, NFPA70, CE, EAC, RoHS |
|
| EN54-24 compliance |
- |
|
| Waterproof |
- |
|
