Overview

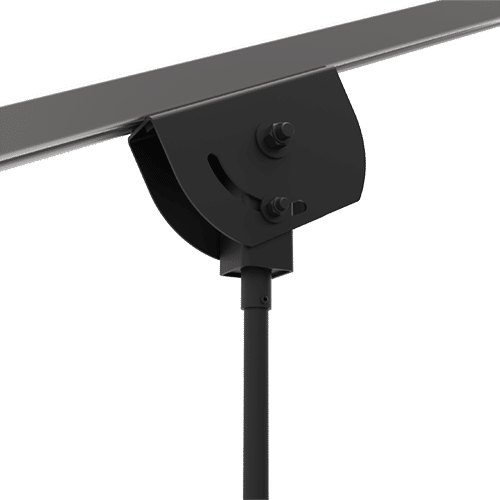

Use Adaptive’s gimballed ceiling attachment to suspend loudspeakers, video displays and other objects from overhead when attached to sloped ceiling and roof structures, up to 90 degrees off vertical. This adapter also mounts to Unistrut channel or can be bolted through the strut when space permits. This SwivelMount suspends and locks objects weighing up to 100 lb using standard schedule-40 1/2” diameter steel pipe.
| Strut Mounted | Ceiling Mounted | Overhang Mounted |
| |
|
|
Features
- For overhead audio & video applications.
- Adapts to standard off-the-shelf schedule 1/2” NPT and
NPS threaded steel pipe
Specifications
| Material: Structural Steel | 1 pc Gimballed Strut Adapter | |
| Finish: Powder Coat | 2 pc 3/8-16X1.25” Hex Bolt | |
| Color: Black | 2 pcs 3/8-16 Nyloc Nut | |
| Design Factor: 7:1 | 2 pcs 3/8” Flast Washer | |
| WLL: 100 lb / 45.3 Kg | 1 pcs Instruction Sheet | |
| Shipping Weight: 8 lbs / 3.6 Kg |
