Overview
Horn section liberation
for brass and woodwind instruments on stage and in studio

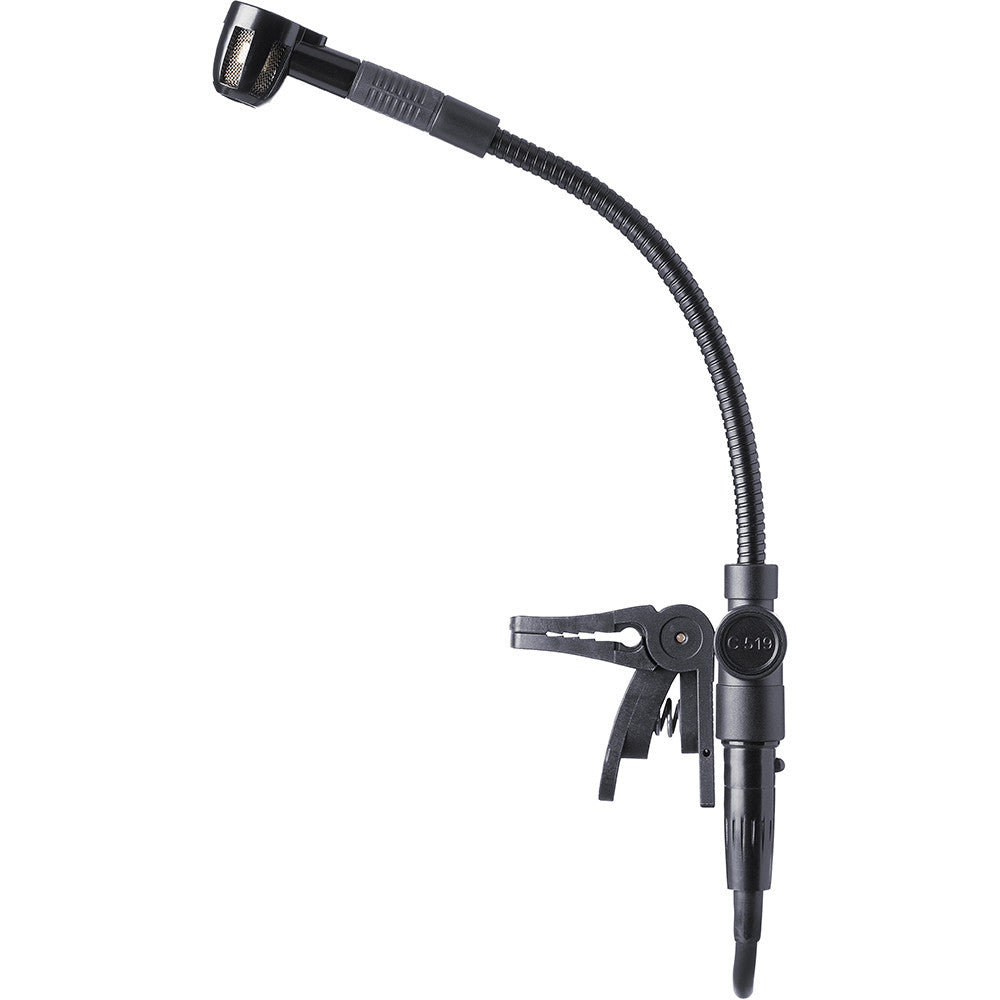

The C519 professional miniature condenser microphone clips gently onto the bell of a trumpet, saxophone, trombone, tuba, didgeridoo or any other wind instrument. Its tight cardioid polar pattern makes the C519 an ideal tool for use near monitor wedges, and its flat frequency response delivers a natural, powerful and clear sound.
The MPAV from C519 M features an integrated, switchable bass cut for adjusting the microphone’s frequency response. The C519 ML package includes a mini-XLR cable and the unique A400 adapter plate for easy mounting onto wireless body-pack transmitters PT40/45/450/470.
Features
-
Cardioid polar pattern - allows operation close to stage monitors
-
Integrated transducer shock mount - for efficient rejection of mechanical noise
-
Rubberized mounting clip - to firm, gentle fit on a wide variety of instruments
-
Rugged highly stable gooseneck - for precise placement of the microphone
-
Detachable microphone cable - easy to install and service
Specifications
| General |
| Audio frequency bandwidth |
60 to 20000 Hz |
| Equivalent noise level |
31 dB-A |
| Sensitivity |
5 mV/Pa |
| Signal to Noise |
63 dB-A |
| Electrical impedance |
200 Ohms |
| Recommended load impedance |
2000 Ohms |
|
| Polar Patterns |
Cardioid |
| Powering Interface |
| Voltage |
9 to 52 V |
| Current |
2 mA |
|
| Audio Output |
| Type |
Mini XLR |
| Gender |
Female |
| Contacts |
3-pin |
|
| Design |
| Body |
metal |
| Finish |
matte black |
|
| Dimensions / Weight |
| Width |
47 mm |
| Height |
213 mm |
| Net Weight |
195 g |
|
