Overview
Inconspicuous assistant
for ticket-window, courtroom and security applications

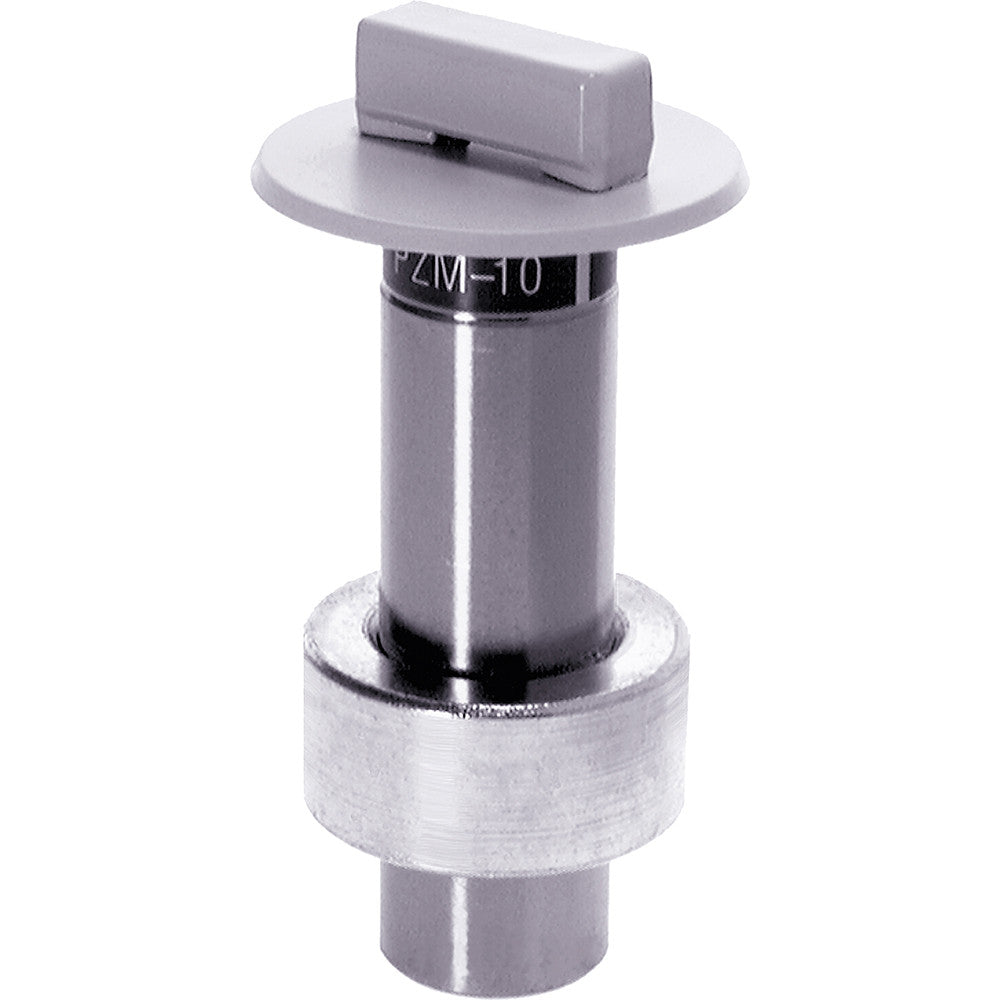

The PZM10 and PZM10 LL, part of the Pressure Zone Microphone® line, are designed for security, surveillance, and conference-table use. The special housing design allows the microphones to be mounted into tables, walls or ceilings easily and inconspicuously.
Using Pressure Zone Microphone® technology, the PZM10 and PZM10 LL are highly sensitive and deliver a wide and smooth frequency response. Thus, the PZM10 and PZM10 LL are characterized by excellent clarity and a consistent pickup anywhere around the mic.
Features
Hemispherical polar pattern - for clear intelligible pickup of speech
Low-profile cylindrical design - perfect for wall or tabletop installation
Choice of mic level output or line-level output (PZM10 LL) - for optimized level matching
PZM10 powered by 12V - 48V phantom power XLR connector - connects to all standard mixers with phantom power out
PZM10 LL powered by 12V - 24V/DC unterminated wires - for the most flexible connectivity
Specifications
| General |
| Audio frequency bandwidth | 80 to 20000 Hz |
| Equivalent noise level | 26 dB-A |
| Sensitivity | 2.5 mV/Pa |
| Signal to Noise | 68 dB-A |
| Recommended load impedance | 2000 Ohms |
|
| Powering Interface |
|
| Audio Output |
| Type |
Balanced XLR |
| Gender |
Male |
| Contacts |
3-pin |
|
| Design |
|
| Dimensions / Weight |
| Height |
72 mm |
| Diameter |
39 mm |
| Net Weight |
74 g |
|
