CHIEF KBD-MINI-19T

Overview

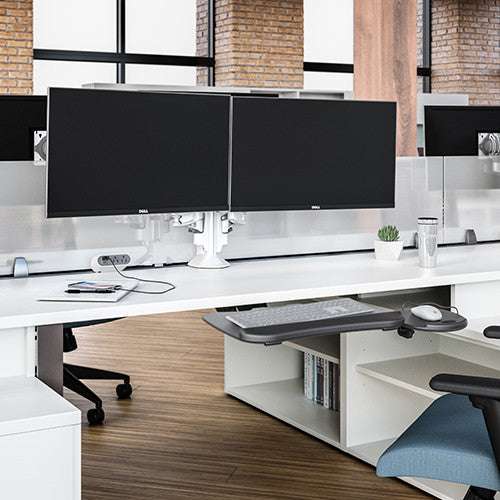

Optimized for seated desk environments, the KBD-MINI-19T provides easy placement of the keyboard and mouse for better ergonomic support. The arm provides height adjustment to 3” (76 mm) above and 5” (127 mm) below the work surface to meet the natural typing height of a seated user.

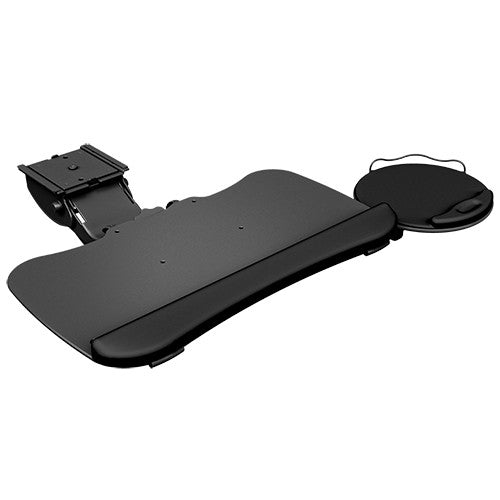

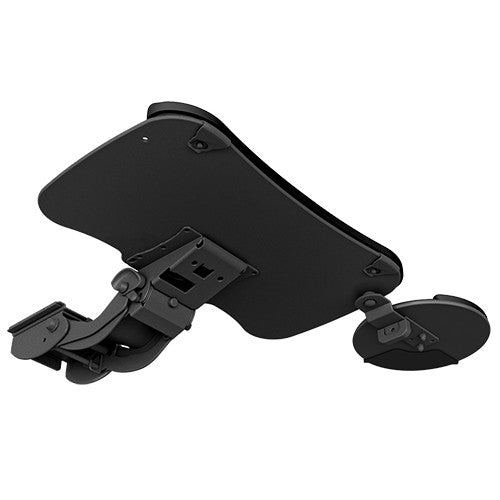

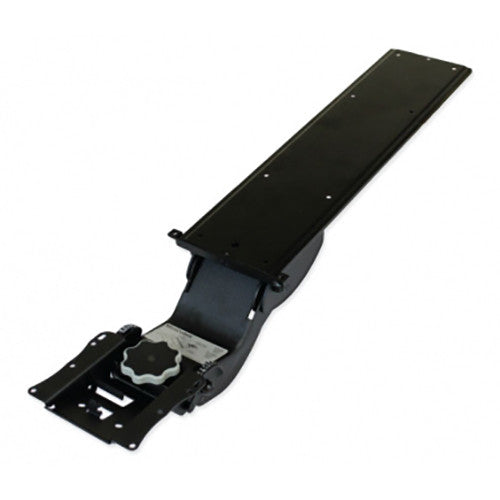

Keyboard Arm:

• Mini keyboard arm is ideal for below desk adjustment
• 8″ (203 mm) total height adjustment range: +3″ (76 mm) above, -5″ (127 mm) below the worksurface
• No knob, lever, or ratchet handle required to set height - simply lift to desired position and release
• Soft-touch wheel adjusts tilt with each turn (+10°/-20°)
• Positive tilt lock-out feature can be field installed
• Counterbalance design offsets keyboard weight during height and tilt adjustment
• Slim profile provides maximum knee clearance, whether in use or retracted for storage
• Rear swivel rotates 360° for optimal keyboard tray positioning and easy storage
• Closed-channel design provides maximum keyboard stability
• Rugged steel construction finished in a durable black textured powder coat
• 21″ (533 mm) track included
• Meets or exceeds ANSI / BIFMA X5.5 1998 industry standard
• All mounting hardware and instructions included
• Made in the USA

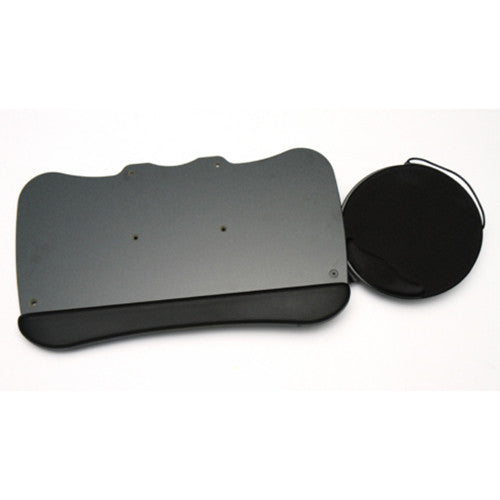

Keyboard Tray:

• 19.5″ wide x 11.5″ deep (495 x 292 mm), with 8.25″ (210 mm) diameter round mouse surface
• 1/4″ (6 mm) thin phenolic allows maximum knee clearance
• Tilt & swivel mouse surface with foam pad provides infinite adjustment
• Foam palm rest (removable) for maximum ergonomic comfort
• Sliding mouse catcher with cord manager

Specification
