Overview

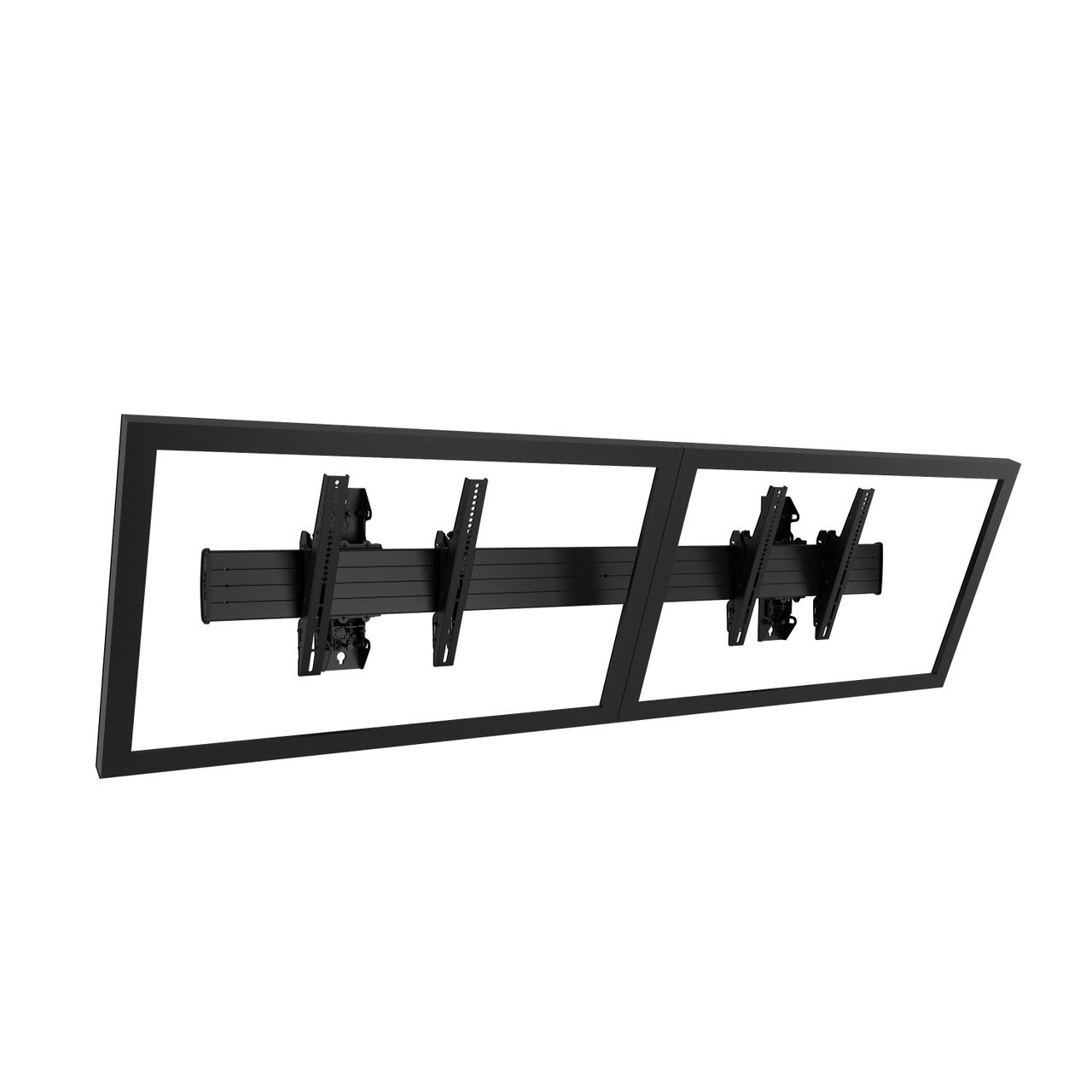

Fusion® Menu Board Wall Mounts offer perfect display positioning and flexible adjustments. The single horizontal extrusion with depth adjustment aligns the screens quickly even on irregular mounting surfaces and allows easy access behind the displays for servicing.
Product Features:
- Single horizontal extrusion keeps screens aligned
- ControlZone™ micro-height adjustment
- Centris® tilt between +0 and -20 degrees
- Tool-free screen engagement
- Portrait and landscape options for 2x1 and 3x1 configurations
- Landscape for 4x1 and 5x1 configurations
- Accommodate 40-55” screens
- Optional padlock security
- Full line of accessories that work across Fusion® wall, ceiling and freestanding lines
Specification
Dimensions & Measurements
| Depth | 8 in (20.3 cm) |
| Height | 16.75 in (42.5 cm) |
| Minimum Depth | 5.8 in (14.7 cm) |
| Overall Dimensions | 16.75 x 156.8 x 5.8" (425 x 3983 x 147 mm) |
| Shipping Weight | 36.7 lbs (16.7 kg) |
| Weight Capacity | 125 lbs (56.7 kg) |
| Width | 156.8 in (398.3 cm) |
Characteristics & Features
| Adjustability | Tilt, Height Adjustable, Lateral Shift |
| Application | Wall |
| Array Configuration | 2x1 |
| Color | Black |
| Number of Displays | 2 |
| Orientation | Landscape |
| Post-Installation Leveling Roll | Dependant upon wall spacing |
| Solution Type | Universal |
| Special Features | Multi-Display |
| Tilt | +0° / -20° |
