Overview

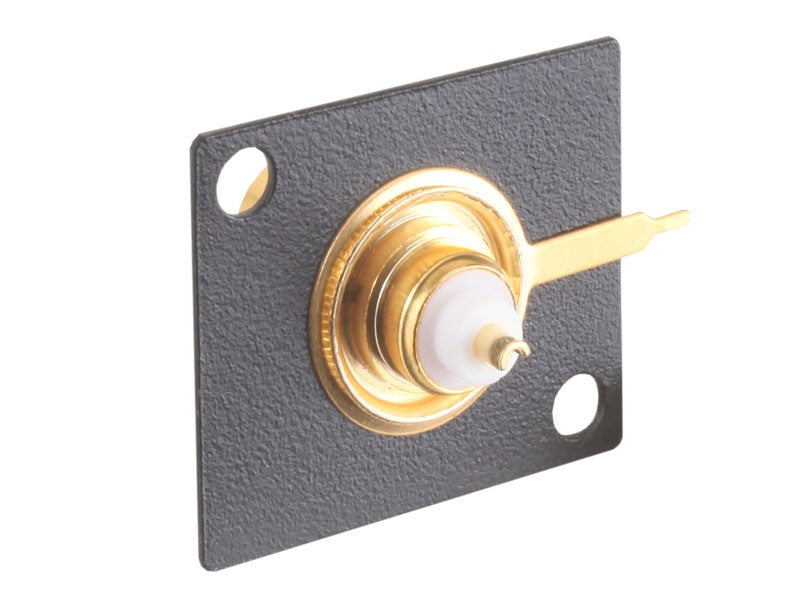

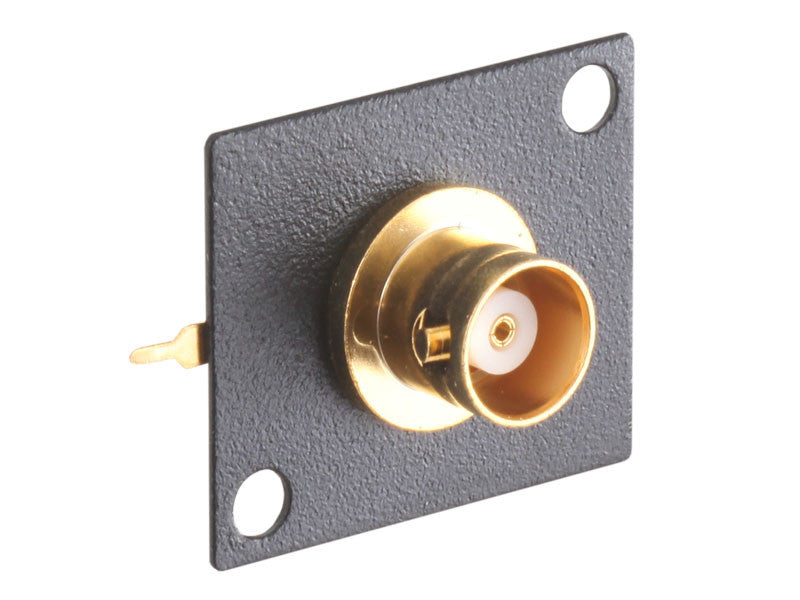

The AMS-BNC is an accessory that mounts in AMS mounting frames and in standard D-style cutouts. It features a high quality gold-plated BNC jack with solder terminals. The front plate is constructed of black satin powder coated steel. A black plastic bezel is provided to finish the D-style cutout hole when the accessory is mounted. These accessories are designed to mount behind the front panel of industry products that provide D-style cutouts.
Features

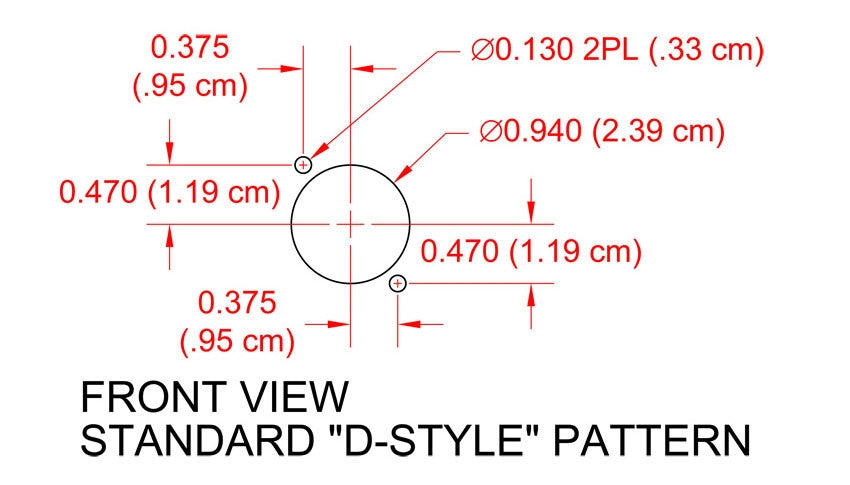

- Mounts in D-Style Standard Cutouts
- Mounts in all RDL AMS Mounting Frames

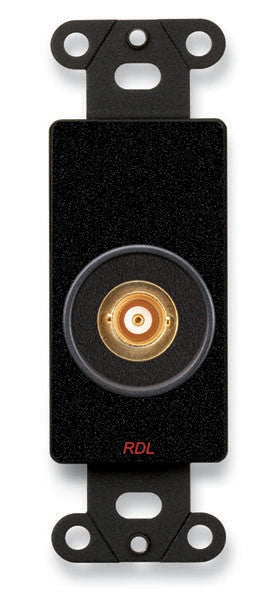

- Mounts in RDL Decora-Style Wall Plates
- Availability of a Wide Variety of Associated AMS Accessories
- Bezel Provides Professional Aesthetic Appearance
- Provides Flexibility for Connections and Controls
Specifications
| Mounting | AMS mounts; D-Style cutouts |
| Depth (behind the panel) | 0.50 in |
| Ambient Operating Environment | -20° C to 70° C |
| Package Type | Bag |
| WEEE Weight | 0.04 lbs |
| Shipping Weight | 0.06 lbs |
| Tariff code | 8536.69.4030 |
