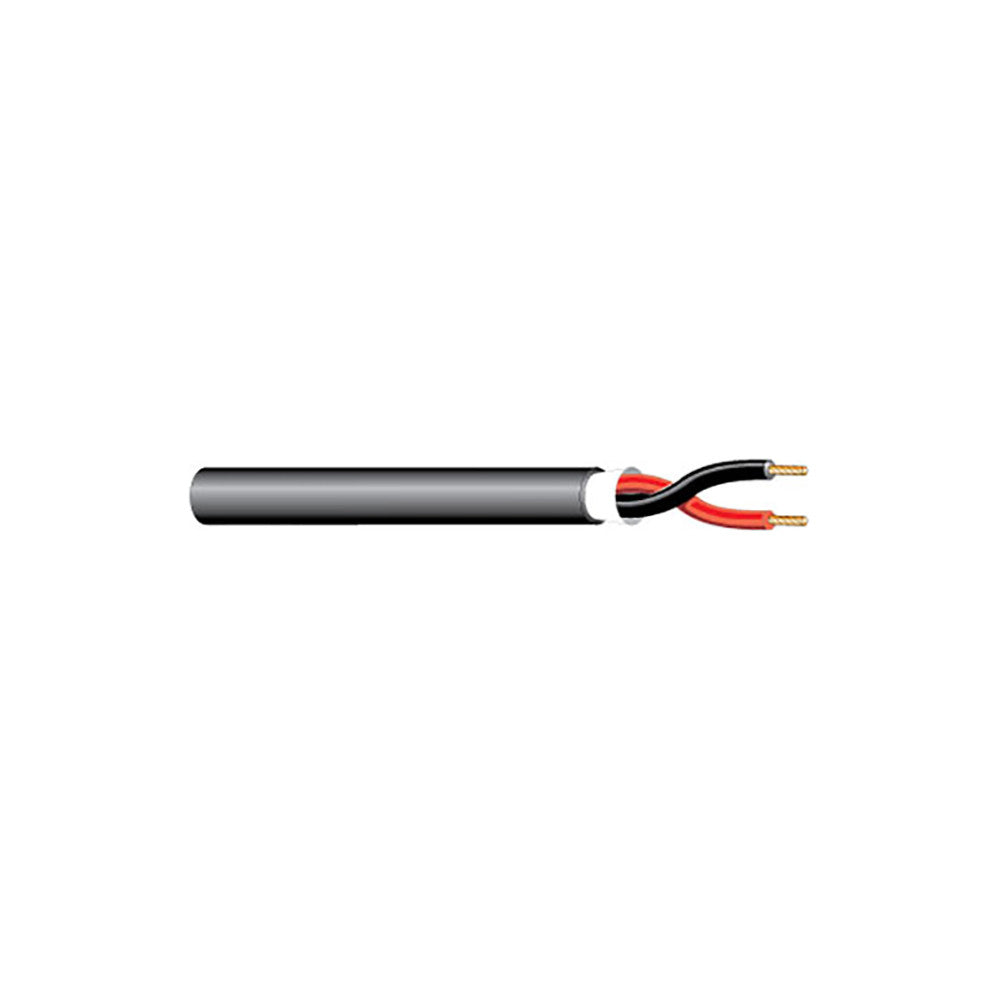

| CONSTRUCTION & DIMENSIONS | |
| CONDUCTOR PARAMETER | |
| Number of Conductors | 2 |
| AWG Size | 18 |
| Conductor Stranding | 7x26 |
| Conductor Type | Bare copper |
| Nominal DCR | 6.2 Ohm/1000ft |
| INSULATION PARAMETER | |
| Insulation Type | PVC-Nylon |
| Insulation Thickness | 0.02 in |
| Insulation Color Code | 1. Black 2.Red |
| SHIELDING PARAMETER | |
| Shield Type | Aquaseal Water Blocking Tape |
| ELECTRICAL CHARACTERISTICS | |
| Nom. Cap. Between Conductors | 25 pF/ft |
| OVERALL CONSTRUCTION PARAMETERS | |
| Jacket Type | UV Resistant PVC |
| Jacket Thickness | 0.04 in |
| Nominal Cable O.D. | 0.27 in |
| Plenum | No |
| NEC UL Rating | CL3, FPL, PLTC |
| RoHS Compliant | Yes |
| TIA Test | TIA455-82 Water Penetration Test |
| Pull Tension | 54 lbs |
| Bend Radius | 2.43 in |
| Cable Weight | 39 lbs |
| OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS | |
| UL Flammability | UL1685 |
| Operating Range | -20 to 90 Deg C |
| UL Voltage Rating | 300 |
